Rohde & Schwarz FSH313
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3.6 GHz |
| Display | 6.5-inch color TFT LCD touchscreen, 640 x 480 pixels |
| Dynamic Range | Up to 100 dB |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Phase Noise | < -100 dBc/Hz at 10 kHz offset (at 1 GHz) |
| DANL (Displayed Average Noise Level) | -161 dBm (1 Hz RBW, with preamplifier) |
| Battery Operating Time | Approximately 4 hours with standard battery pack |
| Weight | Approximately 2.9 kg (6.4 lbs) including battery |
| Input Impedance | 50 Ohm |
| Operating Temperature Range | -10°C to +55°C (14°F to 131°F) |
Rohde & Schwarz FSH313 Options:
- FSH313 - FSH-B1 - Distance-to-Fault Measurement (includes 1 m cable, R&S FSH-Z2 required)
- FSH313 - FSH-K1 - Remote Control via RS-232-C
- FSH313 - FSH-K2 - Vector Transmission and Reflection Measurements
- FSH313 - FSH-K3 - Receiver Mode
| Model | FSH313 |
|---|

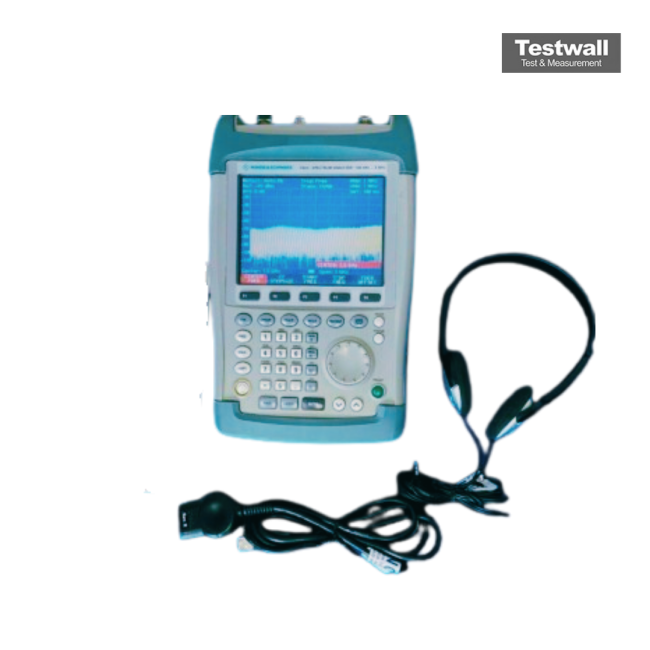

The Rohde & Schwarz FSH313 Spectrum Analyzer offers a frequency range from 100 kHz to 3 GHz with typical accuracy of 0.5 dB, ideal for robust field operations. It features multiple bandwidths from 1 kHz to 1 MHz and advanced detectors such as sample, peak, and RMS.
Perfect for cable installation, RF maintenance, and communication equipment testing, it stores 256 traces and delivers a displayed average noise level of -114 dBm.
Testwall can supply the used Rohde & Schwarz FSH313 Spectrum Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSH313 Spectrum Analyzer
