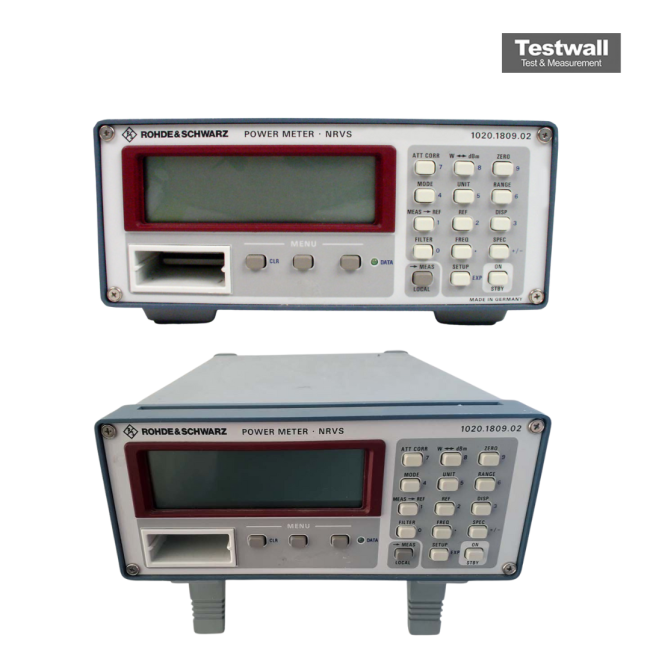

Rohde & Schwarz NRVS
| Attribute | Value |
|---|---|
| Channels | 1 |
| Frequency Range | DC to 40 GHz |
| Power Range | 100 pW to 30 W |
| Display | LCD, 4½ digits, with bargraph |
| Dimensions | 219 × 103 × 350 mm |
| Accuracy | 0.017 dB (0.4%) + 1 digit at 18 to 28 °C (meter only) |
| Compatible Sensors | NRV-Z series sensors, URV5-Z probes and insertion units |
| Power Reference | Opt. NRVS-B1: 50 MHz, 1.00 mW ±0.7%, SWR 1.05 |
| Interfaces | GPIB, analog output BNC, DC control input BNC |
| Weight | 3.2 kg |
Compatible power sensors
| Model | Frequency Range | Power Range | Sensor Type |
| NRV-Z1 | 10 MHz to 18 GHz | 200 pW to 20 mW | diode |
| NRV-Z2 | 10 MHz to 18 GHz | 20 nW to 500 mW | diode, with attenuator |
| NRV-Z3 | 1 MHz to 2.5 GHz | 100 pW to 13 mW | diode, 75 Ω |
| NRV-Z4 | 100 kHz to 6 GHz | 100 pW to 20 mW | diode |
| NRV-Z5 | 100 kHz to 6 GHz | 10 nW to 500 mW | diode, with attenuator |
| NRV-Z6 | 50 MHz to 26.5 GHz | 400 pW to 20 mW | diode |
| NRV-Z15 | 50 MHz to 40 GHz | 400 pW to 20 mW | diode |
| NRV-Z31 | 30 MHz to 6 GHz | 1 µW to 20 mW | peak (diode) |
| NRV-Z32 | 30 MHz to 6 GHz | 100 µW to 2 W (model .04) or 4 W (model .05) | peak (diode), with attenuator |
| NRV-Z33 | 30 MHz to 6 GHz | 1 mW to 20 W | peak (diode), with attenuator |
| NRV-Z51 | DC to 18 GHz | 1 µW to 100 mW | thermocouple |
| NRV-Z52 | DC to 26.5 GHz | 1 µW to 100 mW | thermocouple |
| NRV-Z53 | DC to 18 GHz | 100 µW to 10 W | thermocouple, high power |
| NRV-Z54 | DC to 18 GHz | 300 µW to 30 W | thermocouple, high power |
| URV5-Z | |||
| URV5-Z1 | |||
| URV5-Z2 | |||
| URV5-Z4 | |||
| URV5-Z7 |
The Rohde & Schwarz NRVS offers a power span from 100 pW to the kilowatt range and covers DC to 40 GHz frequencies, depending on the sensor used. Featuring intelligent measuring heads with calibration memory and built-in temperature sensors, it ensures precise readings without user intervention. Analog output and compatibility with URV5-Z voltage probes enhance its utility.
Designed for high-accuracy power measurements, the NRVS supports various laboratory and system applications with thermal, diode, and peak power sensors, as well as voltage probes and insertion units.
Testwall can supply the used Rohde & Schwarz NRVS, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRVS.
