Sorensen

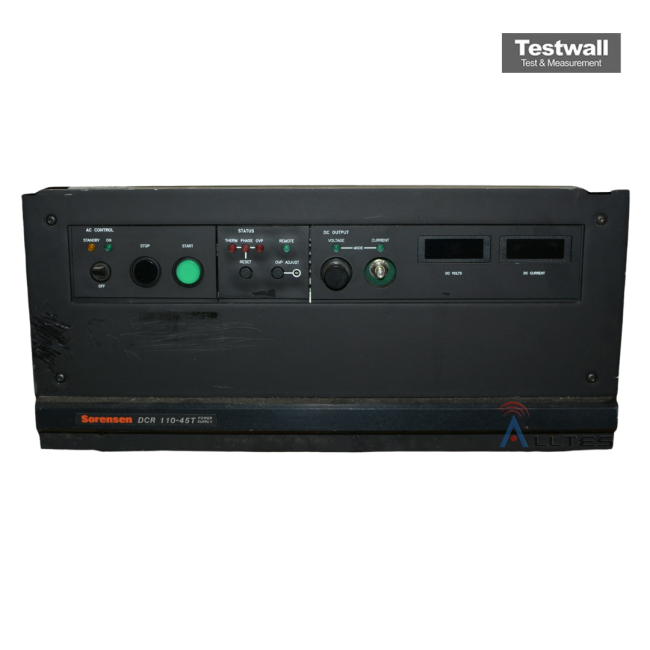

Sorensen DCR110-45T
110V-45A DC Power Supply
0 - 110 VDC Output Voltage
0 - 45 A Output Current
4950 W Output Power
208/240 VAC, Single Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 110 VDC |
| Output Current | 0 - 45 A |
| Output Power | 4950 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.01% + 2 mV |
| Load Regulation | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 1 mV RMS |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mount, 3U |
Sorensen DCR110-45T Options:
- DCR110-45T - T1 - STD. U.S. VOLTAGE, 208V, 60Hz
- DCR110-45T - T2 - STD. CONTINENTAL EUROPE VOLTAGE, 380V, 50Hz
- DCR110-45T - T3 - STD. BRITISH ISLES VOLTAGE, 415V, 50Hz
- DCR110-45T - T4 - 440 Vac ±10% @ 60Hz
- DCR110-45T - T5 - 480 Vac ±10% @ 60Hz
- DCR110-45T - 1060247-1 - Chassis Slides (Optional)
- DCR110-45T - 488 MICRO DAP - Interface to GPIB Bus (Digital Programmer, Optional)
- DCR110-45T - M5 - OVP Option: SCR crowbar M5
| Model | DCR110-45T |
|---|
