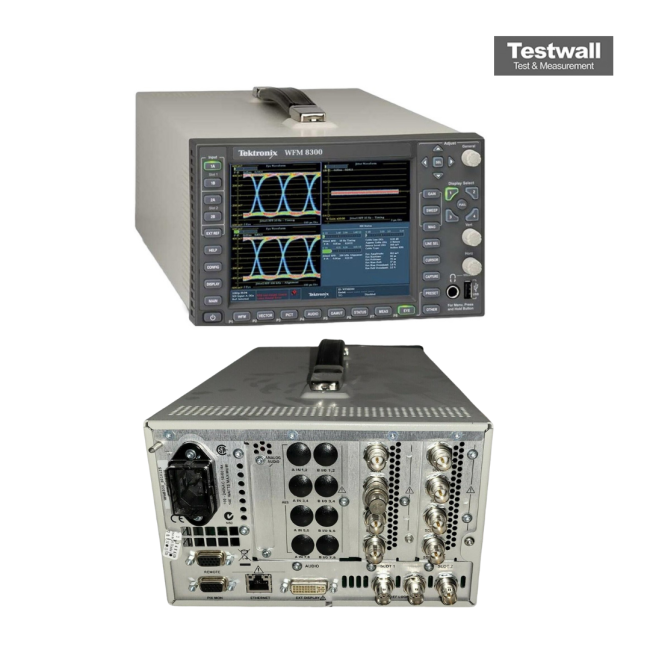

Tektronix WFM8300
Advanced 3G/HD/SD-SDI Waveform Monitor and Analyzer
SD, HD, 3G-SDI, Dual Link HD-SDI, and optional 4K/UHD monitoring Signal Formats Supported
270 Mb/s (SD), 1.485 Gb/s (HD), 2.97 Gb/s (3G-SDI) SDI Input Data Rates
4 inputs (BNC connectors) with active loop-through outputs Number of SDI Inputs
12.1-inch, high-resolution LCD display with 1400 x 1050 pixel resolution Display
Waveform, Vector, Parade, Overlay, Picture, Audio, Datalist, and Eye Diagram Waveform Display Modes
| Attribute | Value |
|---|---|
| Signal Formats Supported | SD, HD, 3G-SDI, Dual Link HD-SDI, and optional 4K/UHD monitoring |
| SDI Input Data Rates | 270 Mb/s (SD), 1.485 Gb/s (HD), 2.97 Gb/s (3G-SDI) |
| Number of SDI Inputs | 4 inputs (BNC connectors) with active loop-through outputs |
| Display | 12.1-inch, high-resolution LCD display with 1400 x 1050 pixel resolution |
| Waveform Display Modes | Waveform, Vector, Parade, Overlay, Picture, Audio, Datalist, and Eye Diagram |
| Audio Monitoring | Supports embedded SDI audio (up to 16 channels), AES/EBU, and analog audio monitoring |
| Reference Input | Black burst and tri-level sync reference inputs via BNC connectors |
| Ethernet Interface | 10/100/1000 Base-T Ethernet for remote monitoring, control, and network integration |
| Power Requirements | 100–240 VAC, 50/60 Hz, approximately 130 W maximum power consumption |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
Tektronix WFM8300 Options:
- WFM8300 - 3G - Add support for 3G-SDI signal formats
- WFM8300 - 2SDI - Adds additional SDI module (in Slot 2) to support up to 4 SDI inputs within Multi-mode displays (3G-SDI, HD-SDI, and SD-SDI support on the same inputs – auto detect); Option 3G required for 3G-SDI support
- WFM8300 - CPS - Add support for composite analog video monitoring; 2 composite analog inputs; passive loopthrough
- WFM8300 - AD - Add analog audio monitoring (2 sets of 6-channel analog audio inputs and 8-channel analog audio outputs) plus 16 channels embedded or AES/EBU digital audio support (8 channels at a time)
- WFM8300 - DPE - Add Option AD capabilities (analog and digital audio – embedded or external AES) plus support for decoding and monitoring Dolby E, Dolby D, and Dolby Digital Plus
- WFM8300 - PHY - Physical Layer Measurement Package (includes 3G-SDI, HD-SDI, and SD-SDI eye pattern and jitter waveform displays; automated measurements of eye pattern parameters, jitter, and cable parameters; color bar and pathological signal generation); Option 3G required for 3G-SDI support
- WFM8300 - PROD - Advanced Gamut Monitoring Package (Spearhead Gamut display and Luma Qualified Vector display)
- WFM8300 - 62 - Analog Audio Breakout Cable, 6 feet, male 62-pin connectors to 8 XLR male output connectors and 12 XLR female input connectors
- WFM8300 - A0 - North America power
- WFM8300 - A1 - Universal Euro power
- WFM8300 - A2 - United Kingdom power
- WFM8300 - A3 - Australia power
- WFM8300 - A5 - Switzerland power
- WFM8300 - A6 - Japan power
- WFM8300 - A10 - China power
- WFM8300 - A11 - India power
- WFM8300 - A12 - Brazil power
- WFM8300 - A99 - No power cord or AC adapter
- WFM8300 - CA1 - Provides single calibration event or coverage for the designated calibration interval whichever comes first
- WFM8300 - C3 - Calibration Service 3 Years
- WFM8300 - C5 - Calibration Service 5 Years
- WFM8300 - D1 - Calibration Data Report
- WFM8300 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- WFM8300 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- WFM8300 - G3 - Complete Care 3 Years (includes loaner, scheduled calibration and more)
- WFM8300 - G5 - Complete Care 5 Years (includes loaner, scheduled calibration and more)
- WFM8300 - R3 - Repair Service 3 Years (including warranty)
- WFM8300 - R5 - Repair Service 5 Years (including warranty)
- WFM8300 - R5DW - Repair Service Coverage 5 Years (includes product warranty period); 5-year period starts at time of customer instrument purchase
- WFM8300 - R3DW - Repair Service Coverage 3 Years (includes product warranty period); 3-year period starts at time of customer instrument purchase
| Model | WFM8300 |
|---|
The Tektronix WFM8300 waveform monitor features quad-3G-SDI inputs and field-upgradable software, enabling advanced monitoring of quad-link 4K/UHD formats. It supports camera lineup, color grading, correction, content QC, and facility maintenance with exceptional accuracy and performance.
Its forward-compatible internal architecture processes 4K data rates, letting users upgrade to UHD formats without replacing equipment, preserving capital investment during tech transitions.
Testwall can supply the used Tektronix WFM8300, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM8300.
