Tektronix 371B
| Attribute | Value |
|---|---|
| Maximum Collector Voltage | 3000 V |
| Maximum Collector Current | 800 A |
| Maximum Power Dissipation | 3000 W (Peak Pulse) |
| Curve Display Type | High Resolution Storage CRT Display |
| Step Generator Output | Voltage or Current Steps, Variable Amplitude and Rate |
| Sweep Voltage Range | 0 to 3000 V |
| Current Measurement Accuracy | ±3% of Full Scale |
| Voltage Measurement Accuracy | ±3% of Full Scale |
| Device Types Supported | Bipolar Transistors, FETs, IGBTs, Diodes, SCRs, and High-Power Semiconductors |
| Power Supply Requirements | 90–250 VAC, 48–66 Hz, Single Phase |
Tektronix 371B Options:
- 371B - A1 - Euro Plug, 220V, 50 Hz
- 371B - A2 - UK Plug, 240V, 50 Hz
- 371B - A3 - Australian Plug, 240V, 50 Hz
- 371B - A5 - Swiss Plug, 220V, 50 Hz
- 371B - AC - China Plug, 50 Hz
- 371B - A9 - No power cord, set to 220/240 V
- 371B - C3 - Calibration Service 3 Years
- 371B - C5 - Calibration Service 5 Years
- 371B - D1 - Calibration Data Report
- 371B - D3 - Calibration Data Report 3 Years (with Option C3)
- 371B - D5 - Calibration Data Report 5 Years (with Option C5)
- 371B - R3 - Repair Service 3 Years
- 371B - R5 - Repair Service 5 Years
- 371B - 1R - Rackmount Kit
| Model | 371B |
|---|

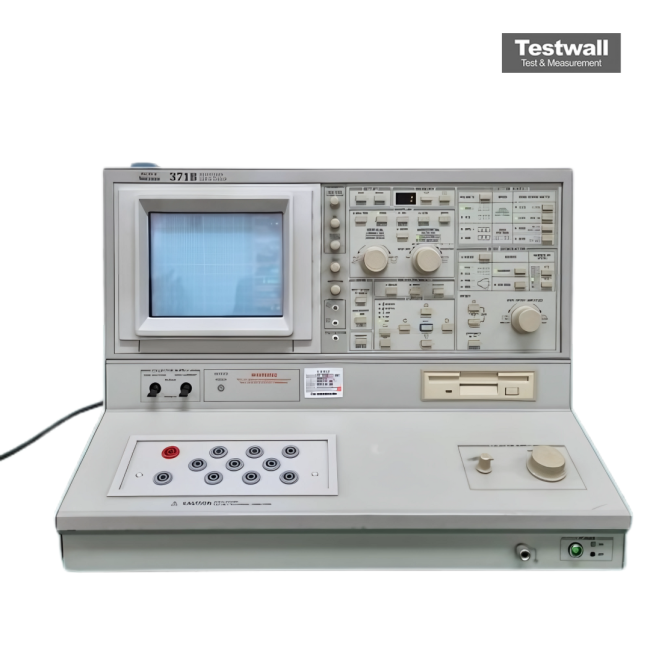

The Tektronix 371B is the industry-standard high-power curve tracer for precise DC parametric analysis of power semiconductors like thyristors, SCRs, IGBTs, and MOSFETs. It offers high-voltage collector mode up to 3,000 V and pulsed high-current capability exceeding 400 A peak, supporting tests up to 3,000 W. Fully programmable with GPIB and equipped with multiple measurement cursors, storage options, and real-time printing support.
Ideal for parametric characterization, failure analysis, quality control, and incoming inspection, it ensures accurate and consistent measurements with minimal heating effects due to low duty-cycle pulses.
Testwall can supply the used Tektronix 371B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 371B
