Tektronix 764
| Attribute | Value |
|---|---|
| Type | Audio Precision Analyzer |
| Frequency Range | 10 Hz to 22 kHz |
| Dynamic Range | Greater than 110 dB |
| Total Harmonic Distortion (THD) | Less than 0.002% |
| Input Impedance | 100 kΩ balanced |
| Output Level Range | -60 dBu to +24 dBu |
| Measurement Functions | Level, Frequency, Phase, THD+N, Signal-to-Noise Ratio |
| Display | Built-in LCD display with numeric readout |
| Interface | GPIB (IEEE-488) remote control interface |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Tektronix 764 Digital Audio Monitor Options:
- 764 - 01 - Embedded Audio Input
- 764 - 02 - Analog Line Output
| Model | 764 |
|---|

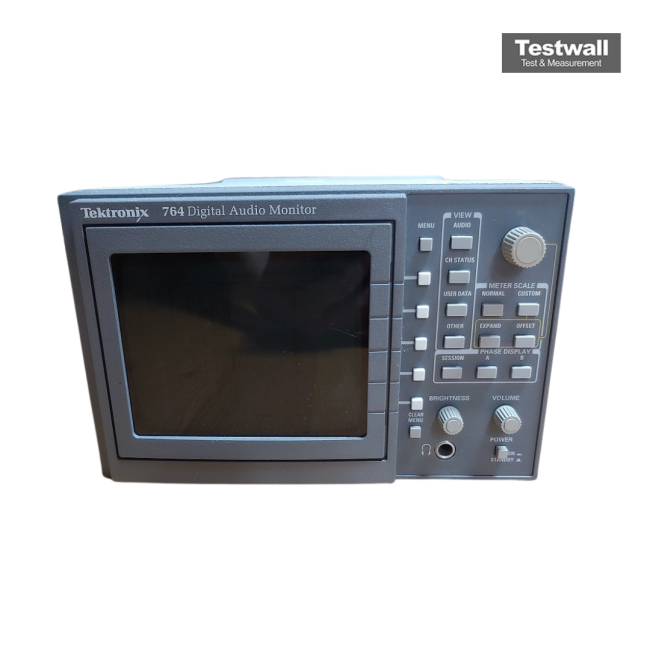

The Tektronix 764 Digital Audio Monitor features 2 balanced or unbalanced AES/EBU or SPDIF loopthrough inputs, 4-channel level meters, adjustable clip/mute indicators, an audio phase display, and a phase correlation meter. It offers a combination of phase and level metering with digital audio data monitoring, making it a powerful tool for setup, calibration, and operational audio assessment in professional environments.
Designed for both technical and production personnel, the 764 includes easy-to-read display screens visible from across a room, with an auxiliary VGA output for larger displays. Its AES/EBU loopthrough capability allows flexible signal path assignment.
Testwall can supply the used Tektronix 764 Digital Audio Monitor, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 764 Digital Audio Monitor.
