Teladyne LeCroy ZS1000
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Probe Type | Single-Ended Active Voltage Probe |
| Input Impedance | 1 MΩ || 0.9 pF |
| Dynamic Range | ±8 V |
| Maximum Input Voltage | ±30 V (DC + Peak AC) |
| Attenuation Ratio | 10:1 |
| Rise Time | 350 ps |
| Noise Floor | 750 µV RMS |
| Cable Length | 1.2 m |
| Compatible Oscilloscopes | Teledyne LeCroy WaveRunner, WaveSurfer, HDO, MDA, and other ProBus-compatible oscilloscopes |
Teladyne LeCroy ZS1000 Options:
- ZS1000 - ZS1000-QUADPAK - Set of 4 ZS1000, 1 GHz, 0.9 pF, 1 MΩ High Impedance Active Probes
| Model | ZS1000 |
|---|

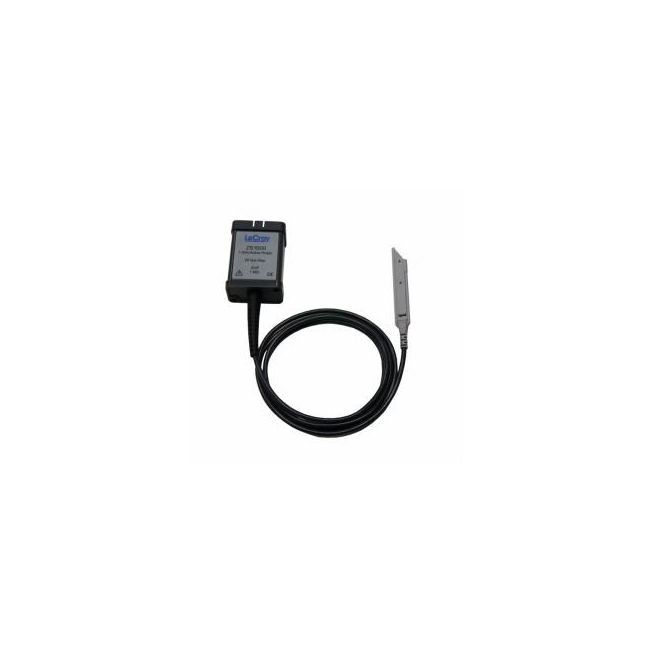

The Teledyne LeCroy ZS1000 is a high-impedance active probe offering 1 GHz analog bandwidth and 10:1 attenuation ratio, ideal for capturing high-frequency signals with minimal distortion. It features 1 MΩ input resistance and ultra-low 0.9 pF capacitance for excellent signal fidelity, with ±8 V dynamic input range and ProBus connectivity.
Engineered for precision in general-purpose high-frequency applications, it includes multiple tip accessories and ground leads for versatile probing configurations.
Testwall can supply the used Teledyne LeCroy ZS1000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy ZS1000.
