Tektronix
Tektronix AWG70001A
Arbitrary Waveform Generator
50 GS/s Sample Rate
20 GHz Analog Bandwidth
10-bit DAC Vertical Resolution
2 GSamples (standard), up to 16 GSamples (optional) Waveform Memory
1 analog output channel Number of Channels
| Attribute | Value |
|---|---|
| Sample Rate | 50 GS/s |
| Analog Bandwidth | 20 GHz |
| Vertical Resolution | 10-bit DAC |
| Waveform Memory | 2 GSamples (standard), up to 16 GSamples (optional) |
| Number of Channels | 1 analog output channel |
| Amplitude Range | 50 mVpp to 1 Vpp into 50 Ω |
| Spurious Free Dynamic Range (SFDR) | >55 dBc typical at 1 GHz |
| Operating System | Windows 10 (64-bit) |
| Connectivity | USB 3.0, 10/100/1000BASE-T Ethernet, PCIe |
| Form Factor | Benchtop instrument with integrated touchscreen display |
| Model | AWG70001A |
|---|

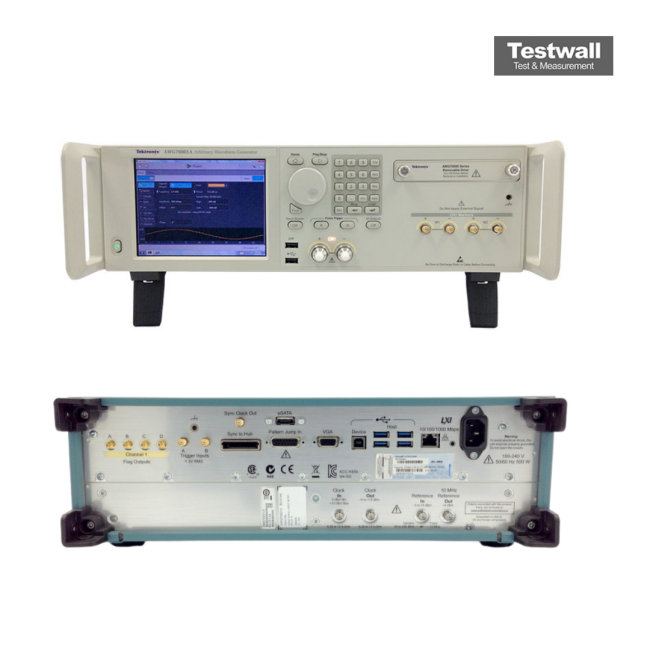

The Tektronix AWG70001A is a 1-channel Arbitrary Waveform Generator offering an impressive sample rate from 1.5 KS/s to 50 GS/s with 10-bit resolution. Its differential SMA output supports a -8 dBm to +2 dBm range with 0.35 dB resolution and waveform length up to 16 GS/s using extended memory.
It features a 165 mm LED backlit touchscreen, operates on Windows 7, and includes interfaces like GP-IB, USB, and LAN with an external TEK-USB-488 adapter.
Testwall can supply the used Tektronix AWG70001A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG70001A.
