Tektronix CSA803
Up to 50 GHz (with appropriate sampling modules) Bandwidth
As low as 7 ps (with 50 GHz sampling modules) Rise Time
10 ps/div to 1 ms/div Timebase Range
8-bit (256 levels) Vertical Resolution
Up to 200 ksamples/s equivalent-time sampling Sample Rate
| Attribute | Value |
|---|---|
| Bandwidth | Up to 50 GHz (with appropriate sampling modules) |
| Rise Time | As low as 7 ps (with 50 GHz sampling modules) |
| Timebase Range | 10 ps/div to 1 ms/div |
| Vertical Resolution | 8-bit (256 levels) |
| Sample Rate | Up to 200 ksamples/s equivalent-time sampling |
| Display Type | Color raster display with waveform database (WfmDB) |
| Number of Input Channels | Up to 4 channels (with dual-channel sampling modules) |
| Trigger Bandwidth | Up to 3 GHz internal trigger bandwidth |
| Waveform Storage | Internal hard disk storage for waveforms and setups |
| Connectivity | GPIB interface for remote control and automation |
| Model | CSA803 |
|---|

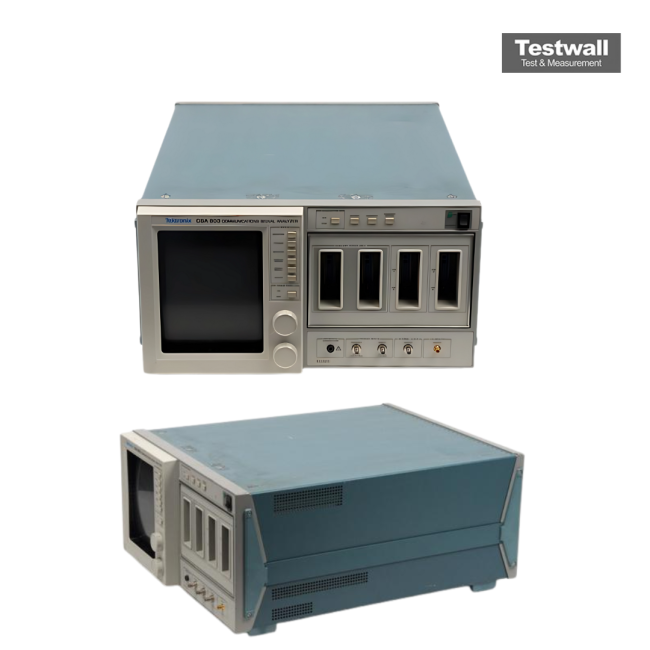

The Tektronix CSA803 Communications Signal Analyzer features 8.8 μs rise time, 200 kHz sampling rate, and up to 50 GHz bandwidth with SD series sampling heads. It supports single-ended and differential TDR/TDT, timing resolution to 0.01 ps, and 8-bit vertical resolution.
Ideal for semiconductor testing, circuit board TDR characterization, and telecom mask testing with support for FDDI, SDH/SONET, and other standards.
Testwall can supply the used Tektronix CSA803, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix CSA803
