Tektronix P5200
| Attribute | Value |
|---|---|
| Bandwidth | 50 MHz |
| Input Voltage Range (High Voltage) | ±1300 V (DC + Peak AC) |
| Differential Voltage Range | ±1300 V (DC + Peak AC) |
| Common Mode Voltage Range | ±1300 V (DC + Peak AC) |
| Attenuation Ratio | 50X / 500X |
| CMRR (Common Mode Rejection Ratio) | 80 dB at 60 Hz, 60 dB at 1 MHz |
| Output Voltage | ±10 V into 1 MΩ load |
| Rise Time | 7 ns (typical) |
| Input Impedance | 10 MΩ, 7 pF (each input to ground) |
| Power Requirements | Powered via oscilloscope probe power port (±12 V to ±15 V) |
Tektronix P5200 Options:
- P5200 - A0 - North America power plug (115 V, 60 Hz)
- P5200 - A1 - Universal Euro power plug (220 V, 50 Hz)
- P5200 - A2 - United Kingdom power plug (240 V, 50 Hz)
- P5200 - A3 - Australia power plug (240 V, 50 Hz)
- P5200 - A4 - North America power plug (240 V, 50 Hz)
- P5200 - A5 - Switzerland power plug (220 V, 50 Hz)
- P5200 - A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- P5200 - A10 - China power plug (50 Hz)
- P5200 - A11 - India power plug (50 Hz)
- P5200 - A12 - Brazil power plug (60 Hz)
- P5200 - A99 - No power cord
- P5200 - C3 - Calibration Service 3 Years
- P5200 - C5 - Calibration Service 5 Years
- P5200 - D1 - Calibration Data Report
- P5200 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- P5200 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- P5200 - R3 - Repair Service 3 Years (including warranty)
- P5200 - R5 - Repair Service 5 Years (including warranty)
- P5200 - SILV200 - Standard warranty extended to 5 years
| Model | P5200 |
|---|

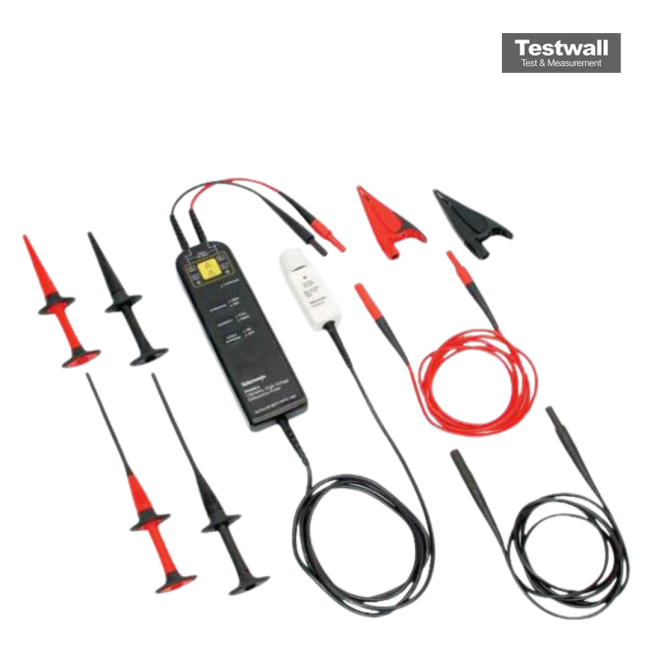

The Tektronix P5200A is a high-voltage active differential probe with a BNC interface, designed for floating signal measurements. With switchable attenuation (50X/500X), 50 MHz bandwidth, and ±1300 V differential range, it safely converts floating signals to ground-referenced outputs compatible with standard oscilloscopes.
Ideal for power electronics, switching power supplies, motor drives, and converter testing, with 10 MΩ input impedance and comprehensive accessory kit included.
Testwall can supply the used Tektronix P5200A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P5200A.
