Tektronix

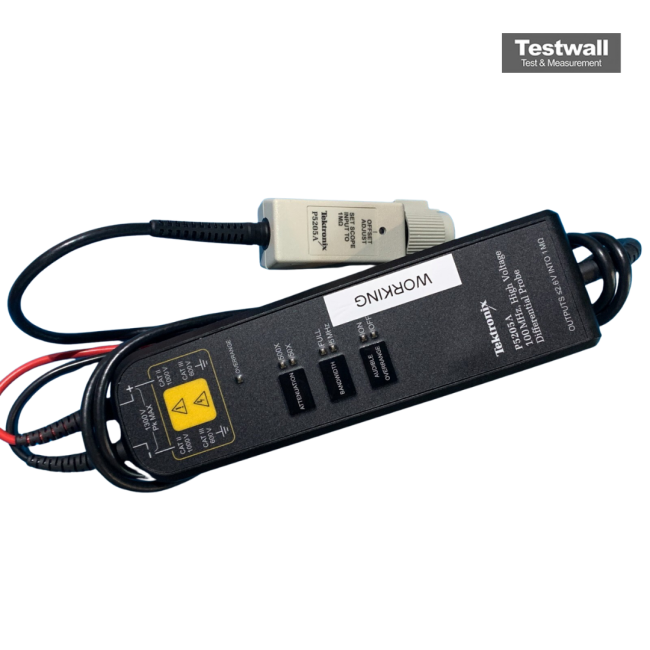

Tektronix P5205A
High Voltage Differential Probe, 100MHz 50X/500X, 1.3kV
1300 MHz Bandwidth
50X / 500X Attenuation Ratio
±1300 V (DC + Peak AC) at 50X; ±13,000 V (DC + Peak AC) at 500X Input Voltage Range
±130 V at 50X; ±1300 V at 500X Differential Voltage Range
±1300 V (DC + Peak AC) Common Mode Voltage Range
| Attribute | Value |
|---|---|
| Bandwidth | 1300 MHz |
| Attenuation Ratio | 50X / 500X |
| Input Voltage Range | ±1300 V (DC + Peak AC) at 50X; ±13,000 V (DC + Peak AC) at 500X |
| Differential Voltage Range | ±130 V at 50X; ±1300 V at 500X |
| Common Mode Voltage Range | ±1300 V (DC + Peak AC) |
| Common Mode Rejection Ratio (CMRR) | 10,000:1 (80 dB) at DC; 100:1 (40 dB) at 1 MHz |
| Rise Time | 700 ps |
| Output Connector | SMA |
| Power Requirements | Powered by Tektronix oscilloscope probe power port |
| Compatible Oscilloscopes | Tektronix oscilloscopes with TekProbe BNC interface or TPA-BNC adapter |
Tektronix P5205A Options:
- P5205A - C3 - Calibration Service 3 Years
- P5205A - C5 - Calibration Service 5 Years
- P5205A - D1 - Calibration Data Report
- P5205A - D3 - Calibration Data Report 3 Years (with Opt. C3)
- P5205A - D5 - Calibration Data Report 5 Years (with Opt. C5)
- P5205A - R3 - Repair Service 3 Years (including warranty)
- P5205A - R5 - Repair Service 5 Years (including warranty)
- P5205A - SILV200 - Standard warranty extended to 5 years
| Model | P5205A |
|---|
The Tektronix P5205A is a 100 MHz active differential probe designed for measuring high-speed floating signals in power electronics. It handles ±1300 V differential, ±1 kV RMS common mode, and supports 50X/500X attenuation with TekProbe interface compatibility.
Ideal for IGBT motor drives and converters, with a 4 MΩ input impedance, overvoltage alerts, and IEC/UL safety certifications for precise and secure measurements.
Testwall can supply the used Tektronix P5205A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P5205A.
