Tektronix P6243
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Rise Time | 350 ps |
| Input Impedance | 1 MΩ in parallel with 10 pF |
| Attenuation Ratio | 10X |
| Input Capacitance | 1.3 pF (with compensation box) |
| Maximum Input Voltage | 40V CAT I (peak AC + DC) |
| Cable Length | 1.2 m (approx. 4 ft) |
| Compensation Range | 15 pF to 60 pF |
| Dynamic Range | ±0.6V at probe tip |
| Compatible Oscilloscopes | Tektronix TDS/CSA 700 and 600 series oscilloscopes with TekProbe interface |
Tektronix P6243 Options:
- P6243 - C3 - Calibration Service 3 Years
- P6243 - C5 - Calibration Service 5 Years
- P6243 - D1 - Calibration Data Report
- P6243 - D3 - Calibration Data Report 3 Years (with Option C3)
- P6243 - D5 - Calibration Data Report 5 Years (with Option C5)
- P6243 - R3 - Repair Service 3 Years
- P6243 - R5 - Repair Service 5 Years
| Model | P6243 |
|---|

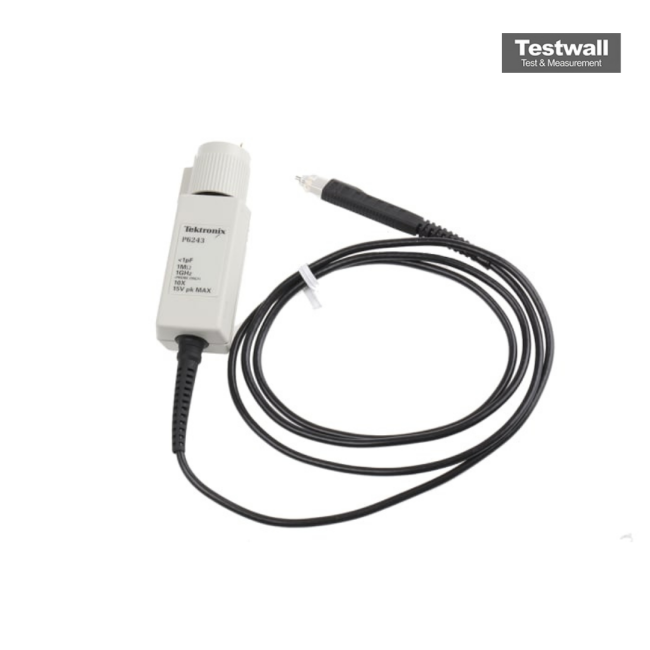

The Tektronix P6243 Active FET Probe is engineered for high-speed signal acquisition, offering a 1 GHz probe-only bandwidth and achieving 500 MHz system bandwidth when paired with Tektronix 500 MHz oscilloscopes. Its TEKPROBE BNC interface simplifies setup by eliminating external power requirements, while its ≤1 pF capacitive loading ensures minimal signal interference.
Ideal for applications in high-speed digital systems, component characterization, and research, the P6243 includes adaptable accessories for precise measurements on surface mount devices.
Testwall can supply the used Tektronix P6243, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6243.
