Tektronix P6245
| Attribute | Value |
|---|---|
| Bandwidth | 1.5 GHz |
| Rise Time | 233 ps |
| Input Impedance | 1 MΩ (with TekConnect interface) |
| Input Capacitance | 0.7 pF (probe tip) |
| Dynamic Range | ±8 V (at probe tip) |
| Attenuation Ratio | 10X |
| Maximum Input Voltage | ±8 V DC + Peak AC |
| Cable Length | 1.2 m (approximately 4 ft) |
| Compatible Oscilloscopes | TDS694C, TDS784D, TDS794D, TDS3000 Series, and TekConnect-equipped oscilloscopes |
| Connector Type | TekConnect |
| Model | P6245 |
|---|

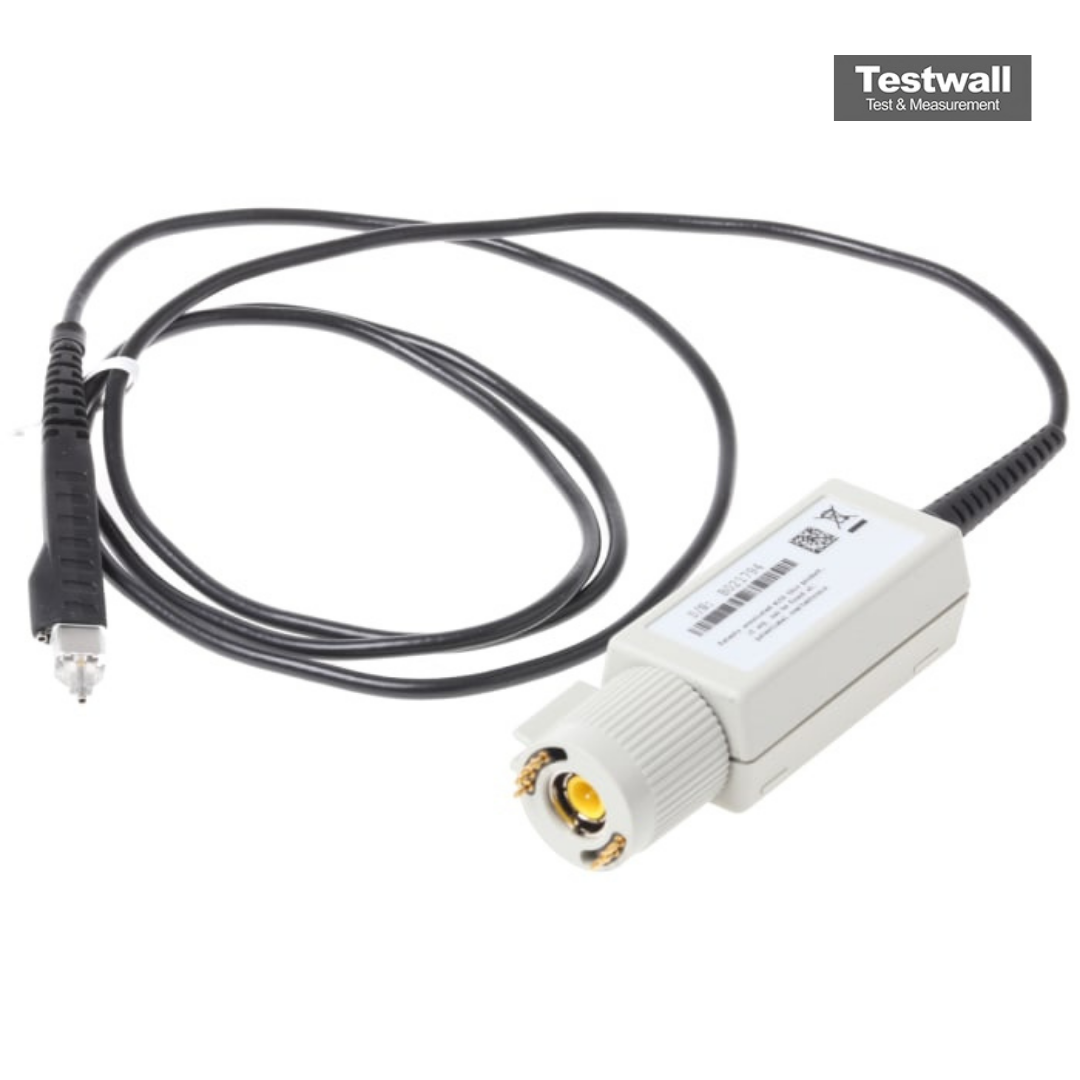

The Tektronix P6245 Active Probe delivers ≥1.5 GHz bandwidth and ≤1 pF input capacitance, making it ideal for high-speed signal acquisition. It features 1 MΩ input resistance, low-mass probe head, and supports direct SMD access down to 0.5 mm pitch. Designed for TEKPROBE BNC oscilloscopes, it eliminates the need for additional power supplies or cables.
This probe is optimized for testing CMOS, BiCMOS, ECL, GaAs, and TTL logic in high-speed digital designs, manufacturing, and educational research.
Testwall can supply the used Tektronix P6245, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6245.
