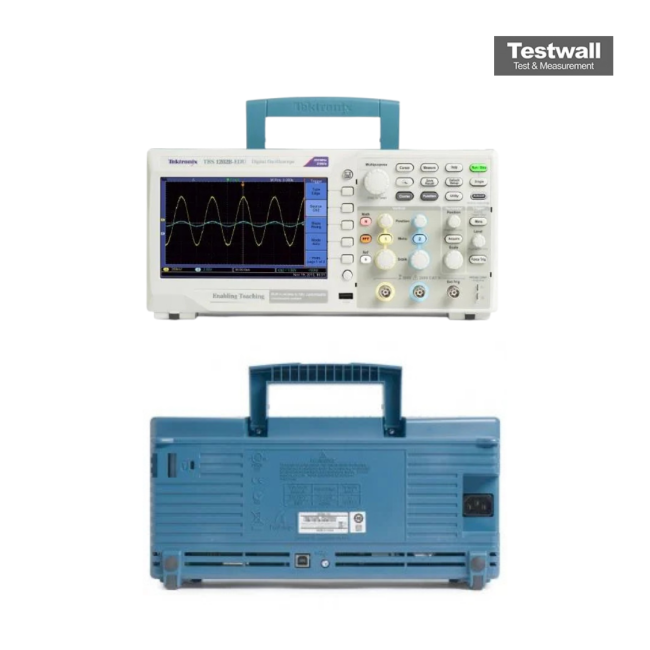

Tektronix TBS1202B
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 2 |
| Sample Rate | 2 GS/s |
| Record Length | 2,500 points |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Display | 7-inch WVGA (800 x 480) TFT color display |
| Connectivity | USB 2.0 Host and Device ports |
| Automatic Measurements | 34 automated measurements including frequency, period, amplitude, rise time, and more |
Tektronix TBS1202B Options:
- TBS1202B - L1 - French overlay
- TBS1202B - L2 - Italian overlay
- TBS1202B - L3 - German overlay
- TBS1202B - L4 - Spanish overlay
- TBS1202B - L5 - Japanese overlay
- TBS1202B - L6 - Portuguese overlay
- TBS1202B - L7 - Simplified Chinese overlay
- TBS1202B - L8 - Traditional Chinese overlay
- TBS1202B - L9 - Korean overlay
- TBS1202B - L10 - Russian overlay
- TBS1202B - A0 - North America power plug (115 V, 60 Hz)
- TBS1202B - A1 - Universal Euro power plug (220 V, 50 Hz)
- TBS1202B - A2 - United Kingdom power plug (240 V, 50 Hz)
- TBS1202B - A3 - Australia power plug (240 V, 50 Hz)
- TBS1202B - A5 - Switzerland power plug (220 V, 50 Hz)
- TBS1202B - A6 - Japan power plug (100 V, 50/60 Hz)
- TBS1202B - A10 - China power plug (50 Hz)
- TBS1202B - A11 - India power plug (50 Hz)
- TBS1202B - A12 - Brazil power plug (60 Hz)
- TBS1202B - A99 - No power cord
- TBS1202B - D1 - Calibration Data Report
- TBS1202B - TBS1XX2B P2220 - Replaces standard probes with P2220 probes (200 MHz passive voltage probes with 1x/10x attenuation)
| Model | TBS1202B |
|---|
The Tektronix TBS1202B Oscilloscope features 200 MHz bandwidth, 2 GS/s sample rate, and 2 channels with 2.5K record length. It includes 34 automated measurements, dual window FFT, advanced triggers, USB connectivity, frequency counter, and a 7” WVGA TFT display for signal clarity and analysis precision.
Ideal for debugging and evaluation of complex circuitry, it supports real-time oversampling, waveform math, auto-ranging, trend plots, and multilingual user interface for intuitive control.
Testwall can supply the used Tektronix TBS1202B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TBS1202B.
