Tektronix TDS224
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 100 MHz |
| Sample Rate | 1 GS/s |
| Record Length | 2,500 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 5 s/div |
| Display | LCD color display |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Connectivity | RS-232, Centronics parallel port, and GPIB (optional) |
Tektronix TDS224 Options:
- TDS224 - A1 - Universal Euro 220 V, 50 Hz
- TDS224 - A2 - United Kingdom 240 V, 50 Hz
- TDS224 - A3 - Australia 240 V, 50 Hz
- TDS224 - A4 - North America 240 V, 60 Hz
- TDS224 - A5 - Switzerland 220 V, 50 Hz
- TDS224 - AC - China 240 V, 50 Hz
- TDS224 - L1 - French User Manual
- TDS224 - L2 - Italian User Manual
- TDS224 - L3 - German User Manual
- TDS224 - L4 - Spanish User Manual
- TDS224 - L5 - Japanese User Manual
- TDS224 - L6 - Portuguese User Manual
- TDS224 - L7 - Simplified Chinese User Manual
- TDS224 - L8 - Traditional Chinese User Manual
- TDS224 - L9 - Korean User Manual
- TDS224 - LR - Russian User Manual
| Model | TDS224 |
|---|

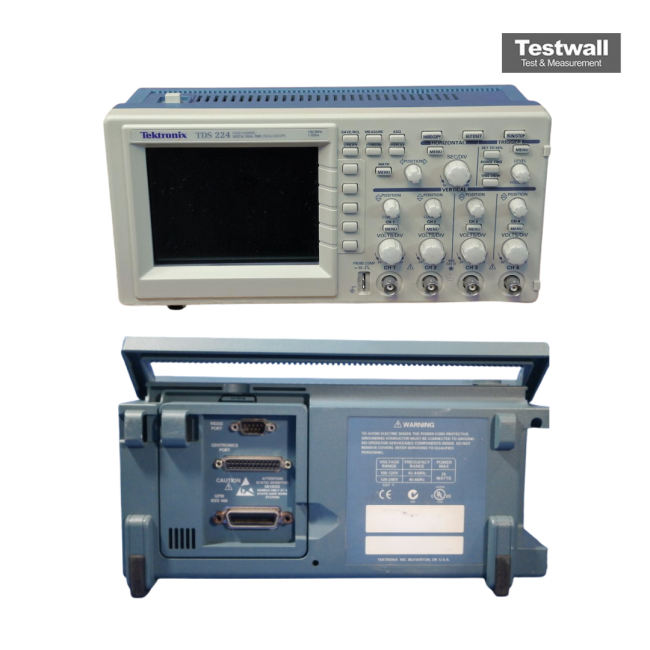

The Tektronix TDS224 is a 100 MHz, 4-channel digital oscilloscope offering 1 GS/s sampling on all channels. It includes dual timebase, automatic measurements, waveform memory, and a multi-language interface. Ideal for analyzing voltage or current signals in electronic circuits, it supports versatile applications with optional software and probing.
Suited for design/debug, service/repair, quality control, and education, the TDS224 enables precise visualization of amplitude, frequency, and rise time.
Testwall can supply the used Tektronix TDS224, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS224.
