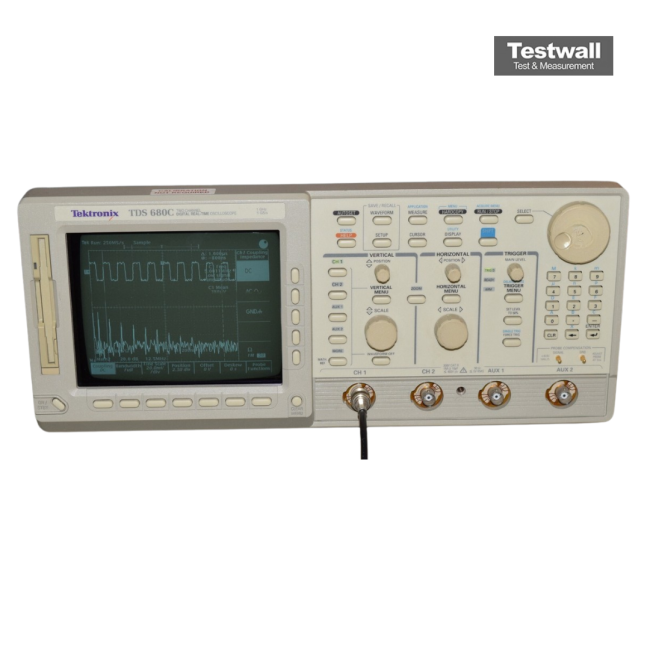

Tektronix TDS680C
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Sample Rate | 5 GS/s |
| Number of Channels | 4 |
| Record Length | 50,000 points per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display Type | Color LCD |
| Connectivity / Interface | GPIB, RS-232, Centronics |
Tektronix TDS680C Options:
Options available for the Tektronix TDS300 / 400 / 500 / 600 / 700 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS680C - 05 - Video trigger
- TDS680C - 13 - RS-232 and Centronics interfaces
- TDS680C - 1F - Built-in floppy disk drive
- TDS680C - 1M - Long record length
- TDS680C - 2F - Advanced DSP math
- TDS680C - 1R - Rack mount configuration
- TDS680C - 1K - Instrument cart
The Tektronix TDS680C oscilloscope offers a 1 GHz bandwidth and 5 GS/s sampling rate on all channels simultaneously, ensuring precise full-bandwidth single-shot captures. It includes advanced waveform DSP and math capabilities, an automated measurement system, and supports waveform pass/fail testing with a vivid color display. Standard interfaces include RS-232, Centronics, and GPIB.
This oscilloscope is ideal for engineers needing high-speed signal capture and in-depth analysis. It supports automated and real-time evaluations, enhancing test accuracy and efficiency.
Testwall can supply the used Tektronix TDS680C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS680C.
