Tektronix THDP0200
Hochspannungsdifferentialsonde, 200 MHz +/- 1500 V, 50x / 500X
200 MHz Bandwidth
±1500 V (CAT III) Maximum Differential Voltage
±1500 V RMS (CAT III) Maximum Common Mode Voltage
10X / 100X Attenuation Ratio
4 MΩ, 7 pF (each input to ground) Input Impedance
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Maximum Differential Voltage | ±1500 V (CAT III) |
| Maximum Common Mode Voltage | ±1500 V RMS (CAT III) |
| Attenuation Ratio | 10X / 100X |
| Input Impedance | 4 MΩ, 7 pF (each input to ground) |
| Dynamic Range | ±700 V (10X), ±7000 V (100X) |
| Rise Time | 1.75 ns |
| Common Mode Rejection Ratio (CMRR) | ≥ 80 dB at 60 Hz |
| Power Supply | Powered via oscilloscope probe interface (no external power required) |
| Safety Rating | CAT III 1500 V, CAT IV 600 V |
| Model | THDP0200 |
|---|

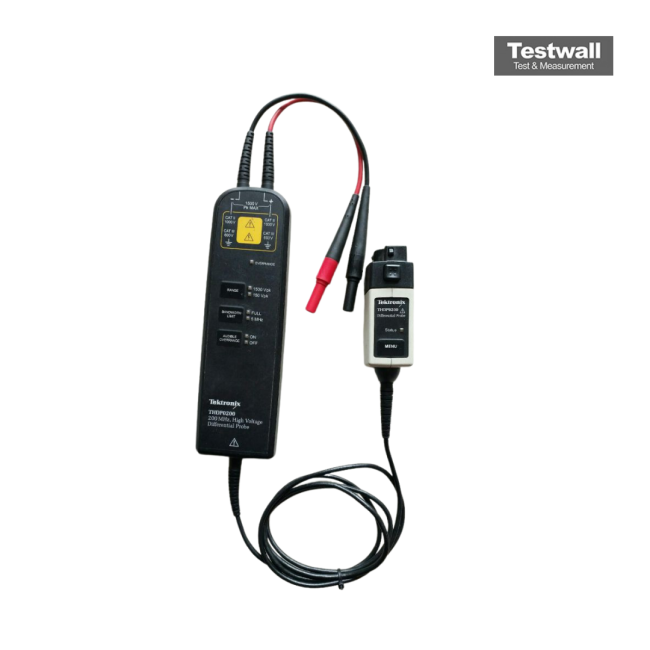

The Tektronix THDP0200 Active Differential Probe measures up to ±1500 V differential voltage with 200 MHz bandwidth and 275 V/ns slew rate, ideal for high-voltage applications like IGBT motor drives and power converters.
With a TekVPI® interface, switchable attenuation and bandwidth limit, and full oscilloscope menu integration, the THDP0200 enhances both safety and precision in power testing.
Testwall can supply the used Tektronix THDP0200, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix THDP0200.
