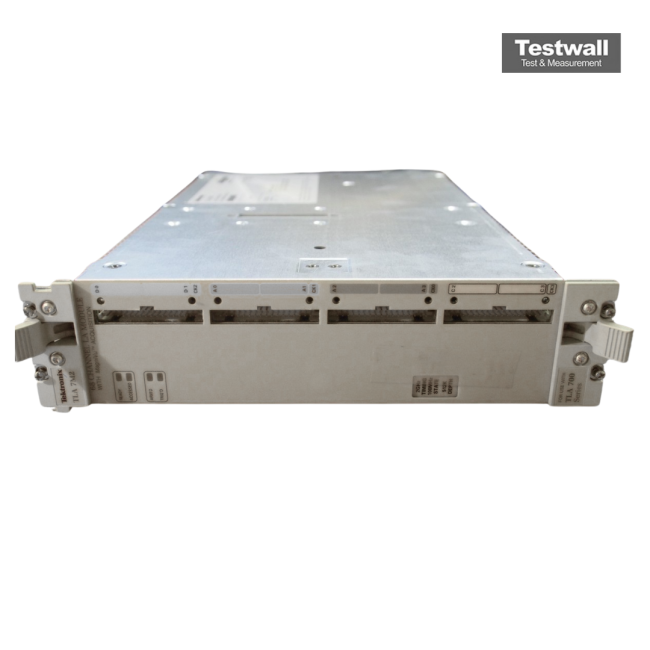

Tektronix TLA7M2
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum Sample Rate | 2 GHz Timing (500 ps resolution) |
| State Clock Rate | Up to 450 MHz |
| Memory Depth | 128 Mb per channel |
| Threshold Voltage Range | -2.0 V to +4.0 V, programmable in 50 mV increments |
| Input Voltage Range | -2.0 V to +4.0 V |
| Minimum Detectable Pulse Width | 1.5 ns |
| Module Form Factor | TLA7000 Series Mainframe Compatible Module |
| Probe Interface | 17 Mictor Connectors (8 channels each + clock) |
| Operating Temperature | 0°C to +50°C |
| Model | TLA7M2 |
|---|
The Tektronix TLA7M2 is a 68-channel logic analyzer module that offers deep channel memory, 100–200 MHz state speed upgrades, and multi-channel capabilities within the TLA700 series. It features MagnaView technology and supports simultaneous state and high-speed timing analysis with integration across oscilloscope and pattern generator modules.
Ideal for hardware and embedded software verification, the TLA7M2 supports I²C including Fast Mode and 10-bit addressing extensions, compatible with systems on 68+ channels using TLA700 mainframes.
Testwall can supply the used Tektronix TLA7M2, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA7M2.
