Tektronix TSG131
| Attribute | Value |
|---|---|
| Output Frequency Range | 1 Hz to 6 MHz |
| Video Standards Supported | NTSC, PAL, SECAM |
| Output Signal Types | Composite Video, Component Video, S-Video (Y/C) |
| Sync Output | Internal and External Sync capability |
| Output Impedance | 75 Ohms |
| Output Amplitude | 1 V peak-to-peak (composite) |
| Color Subcarrier Frequency (NTSC) | 3.579545 MHz |
| Power Requirements | 90 to 250 VAC, 47 to 63 Hz |
| Operating Temperature Range | 0°C to 50°C (32°F to 122°F) |
| Dimensions (H x W x D) | 88.9 mm x 482.6 mm x 355.6 mm (3.5 in x 19 in x 14 in) |
| Model | TSG131 |
|---|

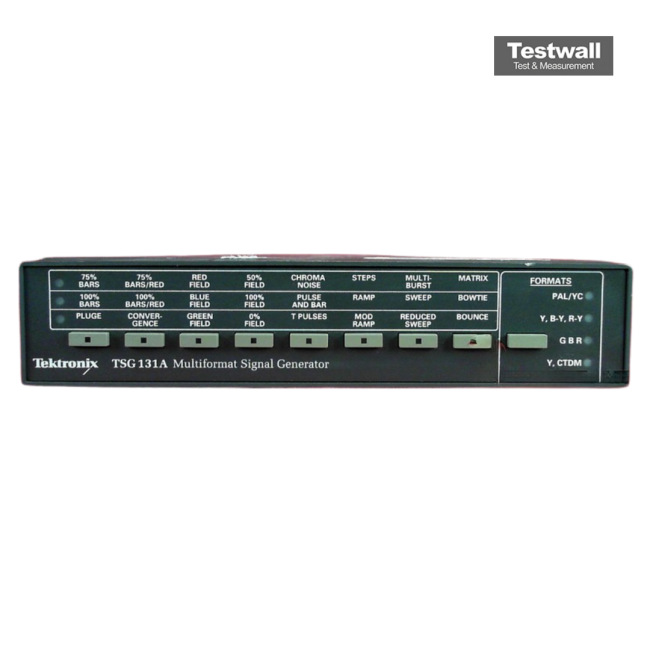

The Tektronix TSG131 is a compact multi-format standard-definition video signal generator supporting PAL, PAL Y/C, Betacam, GBR, and monochrome 625/50 systems. It features advanced signal generation with 10-bit digital accuracy, delivering test patterns like color bars, multiburst, PLUGE, and ramp signals. The unit includes dual 1 kHz audio outputs with phase-locked tones and multiple video output interfaces such as composite, S‑video, and component, ensuring high-precision and versatile field applications.
Designed for broadcast and field servicing, the TSG131 is durable, portable, and ideal for professional video equipment calibration and diagnostics.
Testwall can supply the used Tektronix TSG131, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TSG131.
