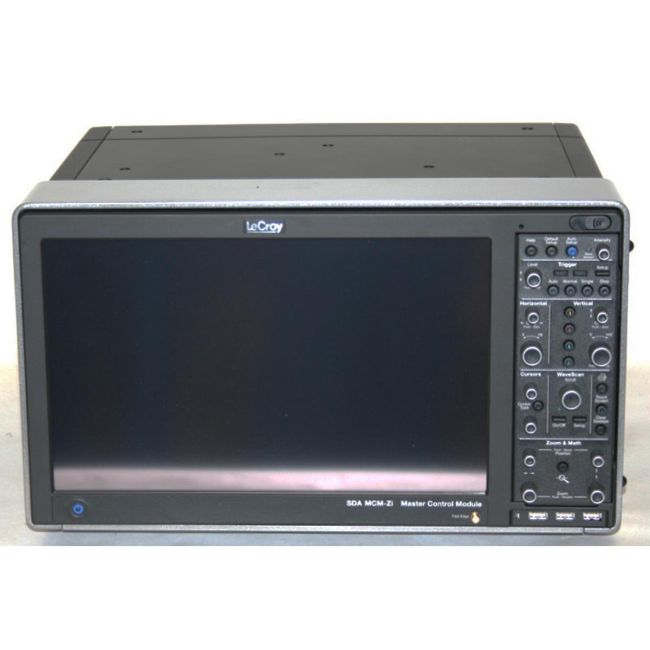

Teledyne LeCroy SDA-MCM-ZI
| Attribute | Value |
|---|---|
| Instrument Type | Serial Data Analyzer (SDA) Module |
| Compatibility | Teledyne LeCroy ZI-Series Oscilloscopes |
| Analysis Capability | Multi-Channel Serial Data Analysis |
| Application | Serial Data Compliance and Debug Testing |
| Eye Diagram Analysis | Yes, Eye Pattern Measurement and Analysis Supported |
| Jitter Analysis | Full Jitter Decomposition including Tj, Rj, Dj, PJ, DDj, ISI |
| Mask Testing | Industry-Standard Mask Testing Supported |
| Software Integration | MAUI Advanced User Interface with SDA Software Package |
| Measurement Standards | Supports Multiple Serial Data Standards including PCIe, USB, SATA |
| Interface | Module-Based Integration via ZI Platform Oscilloscope Interface |
| Model | SDA-MCM-ZI SDA |
|---|
The Teledyne LeCroy SDA-MCM-Zi is a multi-channel module designed to expand high-speed data signal testing with advanced parallel acquisition and synchronisation. It supports time-aligned capture across multiple SDA systems, making it ideal for DDR memory analysis and high-speed bus validation. As part of the LabMaster mainframe ecosystem, it ensures precise measurement accuracy and flexibility in modular testing environments.
This module is particularly suited for engineers handling multi-lane high-speed designs, allowing seamless synchronisation across setups while delivering reliable and repeatable performance in complex testing scenarios.
Testwall can supply the used Teledyne LeCroy SDA-MCM-Zi, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy SDA-MCM-Zi.
