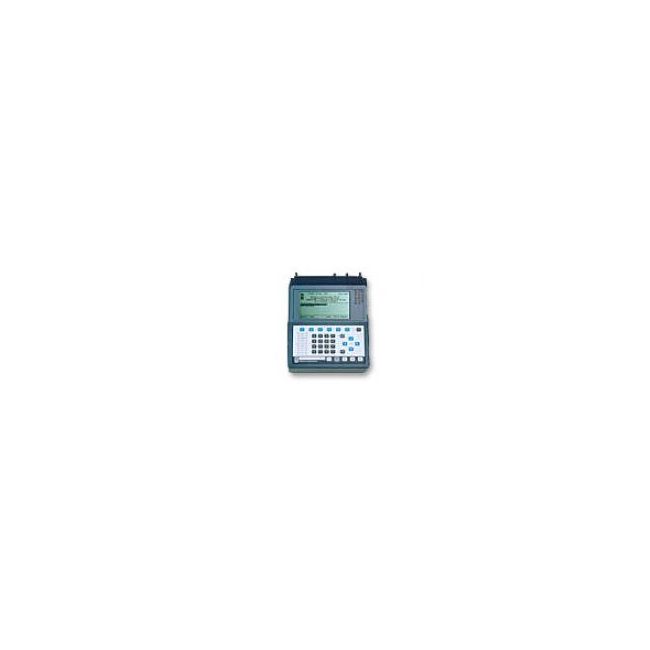

Wandel & Goltermann PA-41
| Attribute | Value |
|---|---|
| Device Type | Preamplifier / Level Measuring Set Preamplifier |
| Frequency Range | 300 Hz to 600 kHz |
| Input Impedance | 600 Ohms balanced |
| Gain | Approximately 20 dB |
| Input Level Range | -60 dBm to +10 dBm |
| Output Level | 0 dBm nominal |
| Power Supply | Powered via host level measuring set / instrument |
| Connector Type | BNC and binding post terminals |
| Compatible Equipment | Wandel & Goltermann level measuring sets and selective voltmeters |
| Form Factor | Compact plug-in accessory module |
Wandel & Goltermann PA-41 Options:
- PA-41 - BN 4532/15 - PA-41 Frame/Signalling Analyzer (complete with six 'C' size Ni-Cd cells and A.C. Adaptor/Charger LNT-6)
- PA-41 - BN 4529/00.01 - European type power plug
- PA-41 - BN 4529/00.02 - UK type power plug
- PA-41 - BN 4529/00.03 - US type power plug
- PA-41 - BN 4529/00.04 - Australian type power plug
- PA-41 - BN 4532/00.01 - RAM Card
- PA-41 - BN 4527/00.01 - Equipment case with cut-outs for PA-41, LNT-6, Telephone Handset, Printer and AC Mains Charger for printer
- PA-41 - BN 4527/00.02 - Equipment case with cut-outs for PA-41, LNT-6 and Telephone Handset
- PA-41 - BN 4527/00.03 - Telephone Handset
- PA-41 - K 1524 - Printer cable
- PA-41 - BN 4532/00.08 - Channel Associated Signalling (CAS) Analysis Software Option
| Model | PA-41 |
|---|
The Wandel & Goltermann PA-41 is a specialized communications analyzer accessory typically used alongside transmission analyzers such as the ANT-20. It delivers calibrated signal output levels for accurate analyzer referencing. This unit supports balanced and unbalanced calibration paths, accommodating diverse test environments with precision. Its compact, durable design ensures reliable performance in field setups.
Ideal for ensuring accurate calibration during field setups, the PA-41 enhances analyzer reference integrity through its flexible signal path options and robust construction.
Testwall can supply the used Wandel & Goltermann PA-41, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Wandel & Goltermann PA-41.
