Keysight (Agilent)

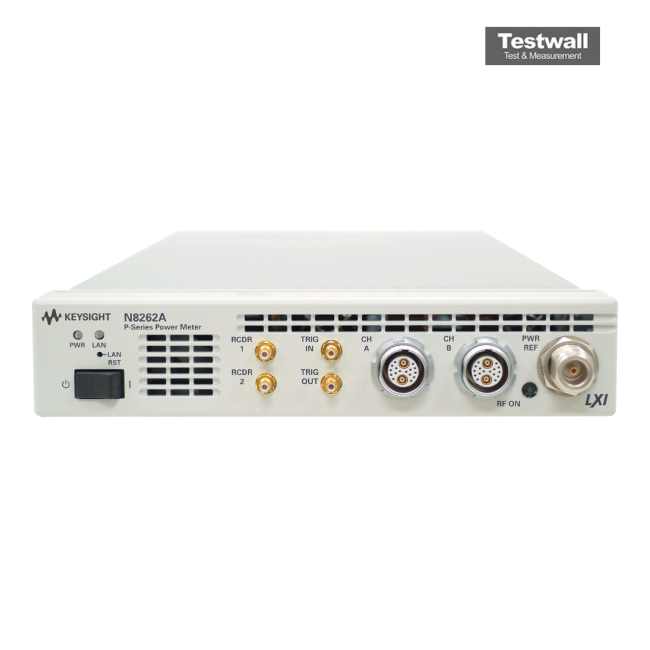

Keysight (Agilent) N8262A
P-Series Modular Power Meter (LXI Compliant)
2 Channels
1500 readings/s min. Measurement Speed
50 MHz, 1 mW (0 dBm) ±0.4% Power Reference
30 MHz Video Bandwidth
212.6 × 44.2 × 420.3 mm Dimensions
| Attribute | Value |
|---|---|
| Channels | 2 |
| Measurement Speed | 1500 readings/s min. |
| Power Reference | 50 MHz, 1 mW (0 dBm) ±0.4% |
| Video Bandwidth | 30 MHz |
| Dimensions | 212.6 × 44.2 × 420.3 mm |
| Compatible Sensors | P-series N1921A/N1922A, E441x/E930x, 8480 series |
| Frequency Range | 50 MHz to 40 GHz with P-series sensors |
| Power Range | -35 to +20 dBm with P-series sensors |
| Accuracy | ±0.2 dB with N1921A, ±0.3 dB with N1922A |
| Time Resolution | 100 MSa/s; rise time 13 ns max. |
| Measurement Types | average, peak, peak-to-average, time-gated, rise/fall time, pulse width |
| Interfaces | LAN (LXI), trigger in/out, recorder output |
| Weight | 3.5 kg max. |
Compatible power sensors
| Model | Frequency Range | Power Range | Sensor Type |
| 8481A | 10 MHz to 18 GHz | -30 to +20 dBm | thermocouple |
| 8481B | 10 MHz to 18 GHz | 0 to +44 dBm | thermocouple, with 25 W attenuator |
| 8481D | 10 MHz to 18 GHz | -70 to -20 dBm | diode, average |
| 8481H | 10 MHz to 18 GHz | -10 to +35 dBm | thermocouple, with 3 W attenuator |
| 8482A | 100 kHz to 4.2 GHz | -30 to +20 dBm | thermocouple |
| 8482B | 100 kHz to 4.2 GHz | 0 to +44 dBm | thermocouple, with 25 W attenuator |
| 8482H | 100 kHz to 4.2 GHz | -10 to +35 dBm | thermocouple, with 3 W attenuator |
| 8483A | 100 kHz to 2 GHz | -30 to +20 dBm | diode, average |
| 8485A | 50 MHz to 26.5 GHz (33 GHz with Opt. 033) | -30 to +20 dBm | thermocouple |
| 8485D | 50 MHz to 26.5 GHz (33 GHz with Opt. 033) | -70 to -20 dBm | diode, average |
| 8487A | 50 MHz to 50 GHz | -30 to +20 dBm | thermocouple |
| 8487D | 50 MHz to 50 GHz | -70 to -20 dBm | diode, average |
| R8486A | 26.5 to 40 GHz | -30 to +20 dBm | thermocouple, waveguide |
| R8486D | 26.5 to 40 GHz | -70 to -20 dBm | diode, average |
| Q8486A | 33 to 50 GHz | -30 to +20 dBm | thermocouple, waveguide |
| Q8486D | 33 to 50 GHz | -70 to -20 dBm | diode, average |
| V8486A | 50 to 75 GHz | -30 to +20 dBm (Opt. H02: -60 to +20 dBm) | diode, average, waveguide |
| W8486A | 75 to 110 GHz | -30 to +20 dBm | diode, average, waveguide |
| E4412A | 10 MHz to 18 GHz | -70 to +20 dBm | diode, CW |
| E4413A | 50 MHz to 26.5 GHz | -70 to +20 dBm | diode, CW |
| E9300A | 10 MHz to 18 GHz | -60 to +20 dBm | diode, average, wide dynamic range |
| E9300B | 10 MHz to 18 GHz | -30 to +44 dBm | diode, average, wide dynamic range |
| E9300H | 10 MHz to 18 GHz | -50 to +30 dBm | diode, average, wide dynamic range |
| E9301A | 10 MHz to 6 GHz | -60 to +20 dBm | diode, average, wide dynamic range |
| E9301B | 10 MHz to 6 GHz | -30 to +44 dBm | diode, average, wide dynamic range |
| E9301H | 10 MHz to 6 GHz | -50 to +30 dBm | diode, average, wide dynamic range |
| E9304A | 9 kHz to 6 GHz | -60 to +20 dBm | diode, average, wide dynamic range |
| E9321A | 50 MHz to 6 GHz | -65 to +20 dBm (average only mode), -50 to +20 dBm (normal mode) | peak and average (diode) |
| E9322A | 50 MHz to 6 GHz | -60 to +20 dBm (average only mode), -45 to +20 dBm (normal mode) | peak and average (diode) |
| E9323A | 50 MHz to 6 GHz | -60 to +20 dBm (average only mode), -40 to +20 dBm (normal mode) | peak and average (diode) |
| E9325A | 50 MHz to 18 GHz | -65 to +20 dBm (average only mode), -50 to +20 dBm (normal mode) | peak and average (diode) |
| E9326A | 50 MHz to 18 GHz | -60 to +20 dBm (average only mode), -45 to +20 dBm (normal mode) | peak and average (diode) |
| E9327A | 50 MHz to 18 GHz | -60 to +20 dBm (average only mode), -40 to +20 dBm (normal mode) | peak and average (diode) |
| N8481A | 10 MHz to 18 GHz | -35 to +20 dBm | thermocouple |
| N8482A | 100 kHz to 6 GHz | -35 to +20 dBm | thermocouple |
| N8485A | 10 MHz to 26.5 GHz (33 GHz with Opt. 033) | -35 to +20 dBm | thermocouple |
| N8486AR | 26.5 to 40 GHz | -35 to +20 dBm | thermocouple, waveguide |
| N8487A | 50 MHz to 50 GHz | -35 to +20 dBm | thermocouple |
| N8488A | 10 MHz to 67 GHz (to 70 GHz typ.) | -35 to +20 dBm | thermocouple |
| N1921A | 50 MHz to 18 GHz | -35 to +20 dBm (≥500 MHz), -30 to +20 dBm (50 to 500 MHz) | peak and average (diode), wideband |
| N1922A | 50 MHz to 40 GHz | -35 to +20 dBm (≥500 MHz), -30 to +20 dBm (50 to 500 MHz) | peak and average (diode), wideband |
Keysight (Agilent) N8262A Options:
- N8262A - 105 - P-Series sensors fixed 1.5 m (5 ft) cable length
- N8262A - 106 - P-Series sensors fixed 3 m (10 ft) cable length
- N8262A - 107 - P-Series sensors fixed 10 m (31 ft) cable length
- N8262A - 908 - Rack mount kit (one instrument)
- N8262A - 909 - Rack mount kit (two instruments)
- N8262A - 1A7 - ISO17025 calibration data including Z540 compliance
- N8262A - A6J - ANSI Z540 compliant calibration test data
- N8262A - 0B1 - Hard copy English language User's Guide and Installation Guide
- N8262A - 0BF - Hard copy English language Programming Guide
- N8262A - 0BK - Hard copy English language User's Guide and Programming Guide
- N8262A - 0BW - Hard copy English language Service and Calibration Guide
- N8262A - ABJ - Hard copy Japanese localization User's Guide
The Keysight (Agilent) N8262A P-Series modular power meter delivers LAN-based automated peak, peak-to-average ratio, and average power measurements. Featuring a 30 MHz wide video bandwidth, it supports code compatibility with P-Series and EPM-P power meters. With LXI-C compliance and a slim 1U half-rack form, it integrates seamlessly into ATE systems and offers remote operation through a web browser GUI, emulating the N1911/12A display.
Ideal for cost-effective ATE setups, it supports all Keysight P-Series wideband, E-Series (excluding E9320), and 8480 Series power sensors. It includes BenchVue software (BV0007B) for easy connectivity and automation.
Testwall can supply the used Keysight (Agilent) N8262A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N8262A.
