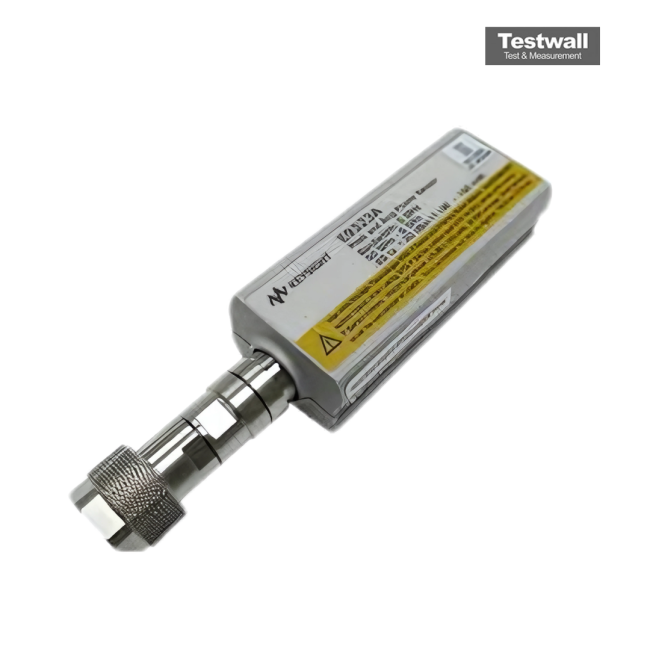

Keysight (Agilent) E9323A
| Attribute | Value |
|---|---|
| Sensor Type | peak and average (diode) |
| Frequency Range | 50 MHz to 6 GHz |
| Video Bandwidth | 5 MHz |
| Rise Time | 0.2 µs (VBW off) |
| Connector | Type-N male |
| Power Range | -60 to +20 dBm (average only mode), -40 to +20 dBm (normal mode) |
| Maximum Power | +23 dBm average, +30 dBm peak (<10 µs) |
| SWR | 1.14 max. at 50 MHz to 2 GHz, 1.22 max. at 2 to 6 GHz |
| Compatible Meters | EPM-P series E4416A/E4417A; P-series N1911A/N1912A; EPM series N1913A/N1914A, E4418B/E4419B (average only) |
| Dimensions | 38 × 30 × 150 mm |
| Weight | 0.2 kg |
Compatible power meters
Keysight Technologies E9323A Options:
- E9323A - A6J - Supplies ANSI/NCSL Z540-1-1994 test data including measurement uncertainties
- E9323A - 0B1 - Add manual set
The Keysight (Agilent) E9323A is a diode power sensor with a 5 MHz video bandwidth, making it perfect for time-gated peak, average, and peak-to-average power measurements on W-CDMA formats like cdma2000. It supports rapid measurement speeds up to 1000 corrected readings per second via GPIB and features a wide dynamic range. EEPROM stores calibration, linearity, temperature, and bandwidth corrections, and it uses a precision type-N connector. Compatible with EPM-P and P-Series power meters.
Ideal for use in W-CDMA and cdma2000 wireless systems, the E9323A excels in precise peak and average power assessments across broad dynamic conditions.
Testwall can supply the used Keysight (Agilent) E9323A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E9323A.
