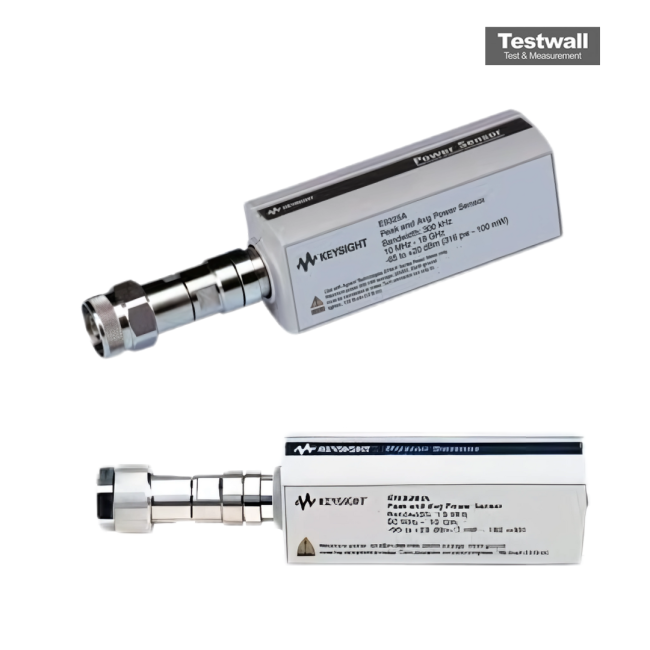

Keysight (Agilent) E9325A
| Attribute | Value |
|---|---|
| Sensor Type | peak and average (diode) |
| Frequency Range | 50 MHz to 18 GHz |
| Video Bandwidth | 300 kHz |
| Rise Time | 0.5 µs (VBW off) |
| Connector | Type-N male |
| Power Range | -65 to +20 dBm (average only mode), -50 to +20 dBm (normal mode) |
| Maximum Power | +23 dBm average, +30 dBm peak (<10 µs) |
| SWR | 1.12 max. at 50 MHz to 2 GHz, 1.16 max. at 2 to 10 GHz, 1.23 max. at 10 to 16 GHz, 1.28 max. at 16 to 18 GHz |
| Compatible Meters | EPM-P series E4416A/E4417A; P-series N1911A/N1912A; EPM series N1913A/N1914A, E4418B/E4419B (average only) |
| Dimensions | 38 × 30 × 150 mm |
| Weight | 0.2 kg |
Compatible power meters
Keysight Technologies E9325A Options:
- E9325A - A6J - Supplies ANSI/NCSL Z540-1-1994 test data including measurement uncertainties
- E9325A - 0B1 - Add manual set
The Keysight (Agilent) E9325A power sensor supports a 300 kHz video bandwidth, tailored for GSM, EDGE, and NADC systems. It provides a fast measurement rate of up to 1000 corrected readings per second via GPIB. Its precision type-N connector and EEPROM-stored calibration ensure accurate, repeatable performance with EPM-P and P-Series power meters.
Designed for use in wireless systems like 1xEV-DO and GSM, the E9325A is ideal for development, verification, and manufacturing applications requiring wide dynamic range and real-time correction factors.
Testwall can supply the used Keysight (Agilent) E9325A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E9325A.
