Rohde & Schwarz NRV-Z3
| Attribute | Value |
|---|---|
| Frequency Range | 0.1 MHz to 4.2 GHz |
| Power Measurement Range | -67 dBm to +20 dBm |
| Connector Type | N-type (50 Ω) |
| Measurement Uncertainty | ±0.9 dB (at 2 GHz, 23°C ± 5°C) |
| SWR (Standing Wave Ratio) | ≤ 1.15 (up to 2 GHz) |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -40°C to +70°C |
| Compatible Instruments | Rohde & Schwarz NRV, NRVS, NRVD power meters |
| Sensor Type | Thermal power sensor (diode-based) |
| Weight | Approximately 250 g |
Rohde & Schwarz NRV-Z3 Options:
- NRV-Z3 - 0828.3418.02 - 13 mW, 75 Ω, 2.5 GHz (standard cable)
- NRV-Z3 - 0828.3418.03 - 13 mW, 75 Ω, 2.5 GHz (with 5 m cable)
| Model | NRV-Z3 |
|---|

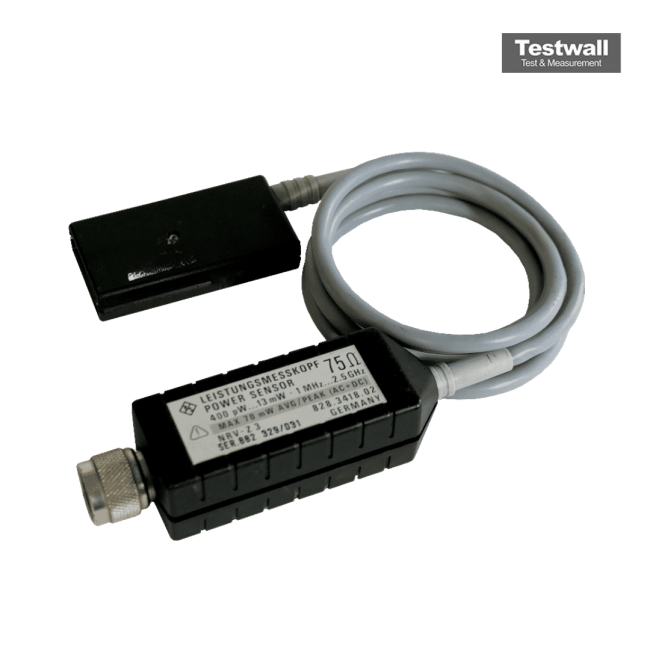

The Rohde & Schwarz NRV-Z3 is a high-sensitivity diode power sensor with a 75 Ohm impedance, covering a frequency range from 1 MHz to 2.5 GHz and a power range from 100 pW to 13 mW. It features an N-connector male interface and includes a 5-meter (16 ft) cable for flexible setup. Designed for use with base units like NRVS, NRVD, URV35, and URV55, the NRV-Z3 ensures accurate and consistent RF power measurements within its dynamic range.
Suitable for a wide variety of measurement applications, the NRV-Z3 is part of a robust lineup of sensors by Rohde & Schwarz. It offers seamless integration and high precision for both laboratory and field use.
Testwall can supply the used Rohde & Schwarz NRV-Z3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRV-Z3.
