Keysight (Agilent) E9327A
| Attribute | Value |
|---|---|
| Sensor Type | peak and average (diode) |
| Frequency Range | 50 MHz to 18 GHz |
| Video Bandwidth | 5 MHz |
| Rise Time | 0.2 µs (VBW off) |
| Connector | Type-N male |
| Power Range | -60 to +20 dBm (average only mode), -40 to +20 dBm (normal mode) |
| Maximum Power | +23 dBm average, +30 dBm peak (<10 µs) |
| SWR | 1.14 max. at 50 MHz to 2 GHz, 1.22 max. at 2 to 16 GHz, 1.26 max. at 16 to 18 GHz |
| Compatible Meters | EPM-P series E4416A/E4417A; P-series N1911A/N1912A; EPM series N1913A/N1914A, E4418B/E4419B (average only) |
| Dimensions | 38 × 30 × 150 mm |
| Weight | 0.2 kg |
Compatible power meters

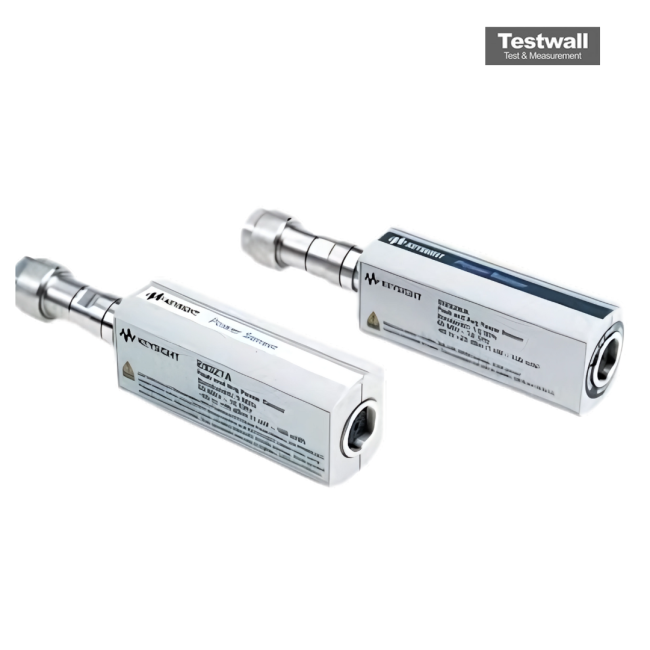

The Keysight (Agilent) E9327A Power Sensor features a 5 MHz video bandwidth, enabling precise time-gated peak, average, and peak-to-average ratio measurements for E-CDMA and cdma2000 signals. It provides up to 1000 corrected readings per second through GPIB and supports a wide dynamic range. Calibration data, including linearity, temperature, and bandwidth corrections, are stored in EEPROM, and it includes a precision type-N connector for consistent connectivity.
This sensor is compatible with EPM-P and P-Series power meters and excels in high-speed wireless testing environments requiring dynamic signal analysis.
Testwall can supply the used Keysight (Agilent) E9327A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E9327A.
