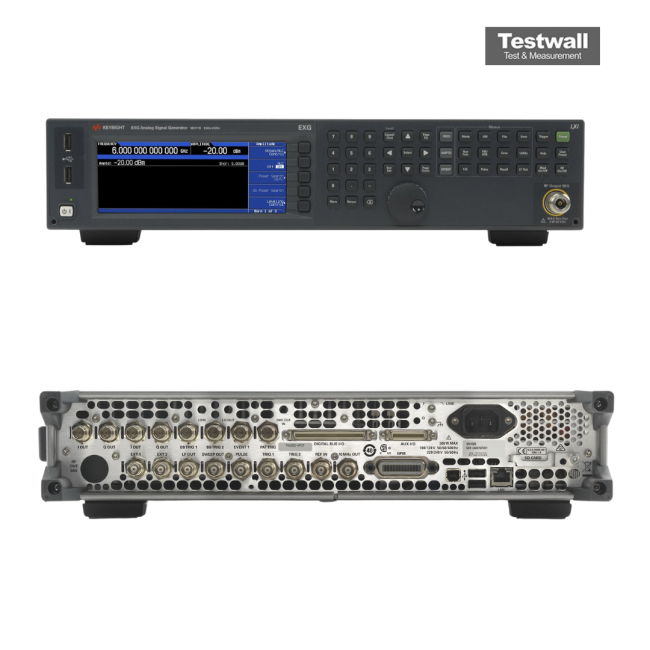

Keysight (Agilent) N5171B-503
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 3 GHz |
| Output Power Range | -110 dBm to +23 dBm |
| Frequency Resolution | 0.001 Hz |
| Phase Noise (1 GHz, 20 kHz offset) | -126 dBc/Hz |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Modulation Types | AM, FM, PM, Pulse Modulation |
| Connector Type | Type-N Female (RF Output) |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature Range | 0°C to 55°C |
| Interface/Connectivity | GPIB, LAN (LXI), USB |
| Model | N5171B-503 |
|---|
The Keysight (Agilent) N5171B-503 is an entry-level EXG-series RF signal generator designed for mid-performance analog testing. It operates from 9 kHz to 3 GHz and delivers high output levels up to +21 dBm. This unit excels with phase noise near –128 dBc/Hz at 500 MHz and low spurious levels under –96 dBc. It supports fast amplitude/frequency switching (<900 µs), offers a wide 160 MHz analog modulation bandwidth with ±0.2 dB flatness, and integrates GPIB, USB 2.0, and Gigabit Ethernet interfaces supporting LXI, SCPI, IVI‑COM, and MATLAB.
Engineered for automated and high-volume testing, the N5171B-503 offers versatile modulation performance and precise signal control. Its quick response and broad connectivity enhance testing efficiency in complex manufacturing environments.
Testwall can supply the used Keysight (Agilent) N5171B-503, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5171B-503.
