Rohde & Schwarz NRV-Z54
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Power Measurement Range | -35 dBm to +20 dBm |
| Connector Type | N-type (female) |
| Measurement Uncertainty | ±0.9 dB (typical) |
| SWR (Standing Wave Ratio) | ≤ 1.15 (up to 2 GHz), ≤ 1.35 (up to 18 GHz) |
| Sensor Type | Thermal Power Sensor (Diode-based) |
| Compatible Instruments | Rohde & Schwarz NRV, NRVS, NRVD power meters |
| Operating Temperature | 0 °C to +55 °C |
| Impedance | 50 Ω |
| Maximum Input Power (Continuous) | 200 mW (+23 dBm) |
| Model | NRV-Z54 |
|---|

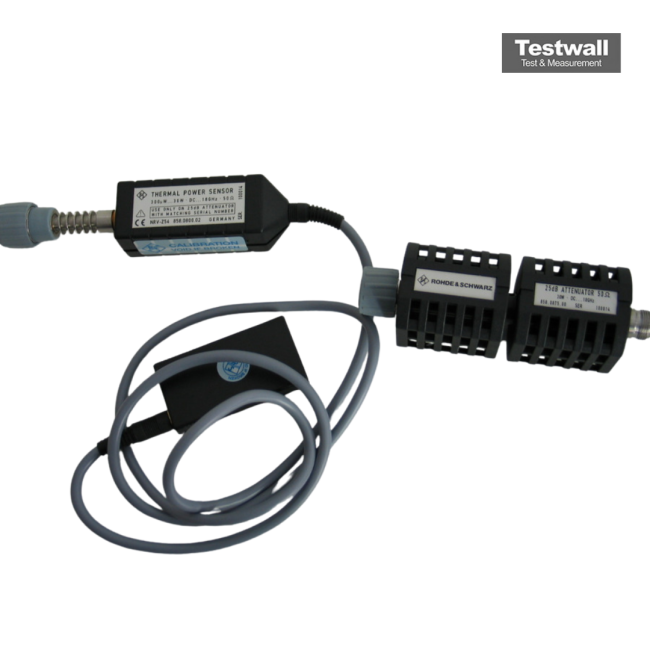

The Rohde & Schwarz NRV-Z54 is a high-power thermal power sensor compatible with the NRV, NRVS, and NRVD meter series. It operates across a frequency range from DC to 18 GHz and handles power measurements from 300 µW to 30 W, with a peak capacity of 1 kW. The unit features an N-type male connector with 50 Ω impedance.
Ideal for high-frequency power testing, the NRV-Z54 provides precise measurements in various applications. Its robust build supports reliable performance under demanding conditions.
Testwall can supply the used Rohde & Schwarz NRV-Z54, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRV-Z54.
