Rohde & Schwarz

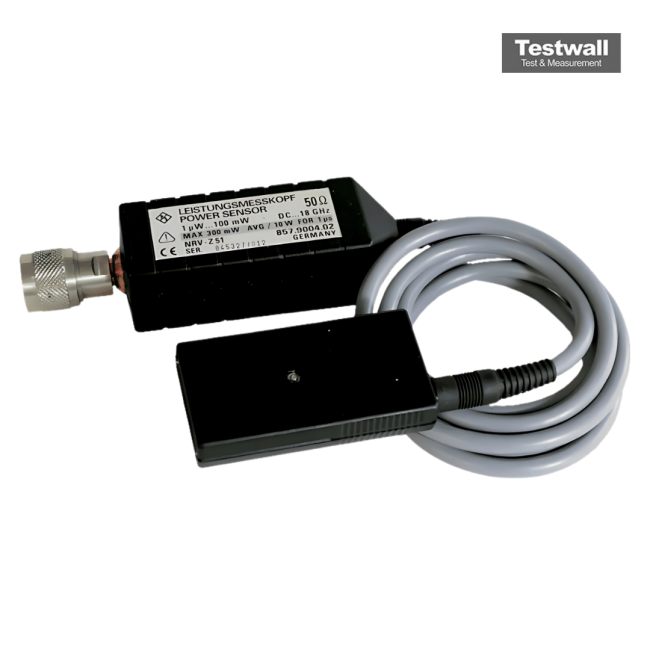

Rohde & Schwarz NRV-Z51
DC-18GHz 300mW Power Sensor
DC to 18 GHz Frequency Range
-67 dBm to +20 dBm Power Measurement Range
N-type (50 Ω) Connector Type
Thermal Power Sensor (Diode-based) Sensor Type
±0.9 dB (typical) Measurement Uncertainty
€1,450.00 excl. VAT + free EU delivery
| Attribute | Value |
|---|---|
| Frequency Range | DC to 18 GHz |
| Power Measurement Range | -67 dBm to +20 dBm |
| Connector Type | N-type (50 Ω) |
| Sensor Type | Thermal Power Sensor (Diode-based) |
| Measurement Uncertainty | ±0.9 dB (typical) |
| Compatible Instruments | Rohde & Schwarz NRV, NRVS, and NRV-Z series power meters |
| Operating Temperature Range | 0 °C to +55 °C |
| Storage Temperature Range | -40 °C to +70 °C |
| Impedance | 50 Ω |
| Maximum Input Power (Non-Destructive) | +30 dBm (1 W) |
| Model | NRV-Z51 |
|---|
The Rohde & Schwarz NRV-Z51 thermal power sensor offers high-precision power measurement from 1µW to 10W across a broad frequency range of DC to 18 GHz.
It is ideal for accurate CW and average power measurements on modulated signals, especially at power amplifier outputs.
Testwall can supply the used Rohde & Schwarz NRV-Z51, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRV-Z51.
