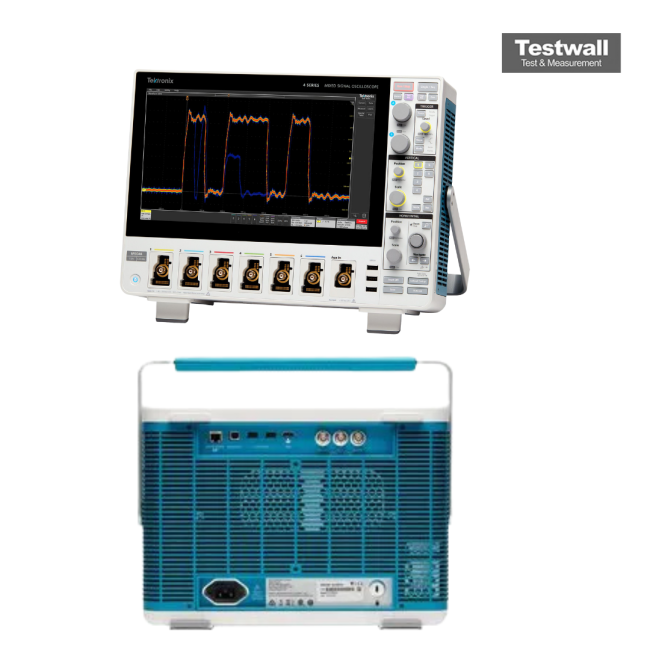

Tektronix MSO44 4-BW-500 4 Series MSO
4 Channel Mixed Domain Oscilloscope, 500 MHz
500 MHz Bandwidth
4 Analog Channels
6.25 GS/s Sample Rate
31.25 M points standard Record Length
32 (via TLP058 logic probe) Digital Channels
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Analog Channels | 4 |
| Sample Rate | 6.25 GS/s |
| Record Length | 31.25 M points standard |
| Digital Channels | 32 (via TLP058 logic probe) |
| Vertical Resolution | 12-bit ADC |
| Display | 13.3-inch HD (1920 x 1080) capacitive touchscreen |
| Waveform Capture Rate | 500,000 waveforms per second |
| Integrated Instruments | Oscilloscope, Logic Analyzer, Protocol Analyzer, Arbitrary Function Generator, Digital Voltmeter, Frequency Counter |
| Connectivity | USB 2.0, USB 3.0, LAN (LXI), HDMI |
Tektronix MSO44 4-BW-500 4 Series MSO Options:
- MSO44 - 4-BW-200 - 200 MHz Bandwidth
- MSO44 - 4-BW-350 - 350 MHz Bandwidth
- MSO44 - 4-BW-500 - 500 MHz Bandwidth
- MSO44 - 4-BW-1000 - 1 GHz Bandwidth
- MSO44 - 4-BW-1500 - 1.5 GHz Bandwidth
- MSO44 - 4-RL-1 - Extend record length from 31.25 Mpoints/channel to 62.5 Mpoints/channel
- MSO44 - 4-AFG - Add Arbitrary / Function Generator
- MSO44 - 4-SEC - Add enhanced security for instrument declassification and password protected enabling and disabling of all USB and Ethernet ports and firmware upgrade
- MSO44 - 4-SRAERO - Aerospace serial triggering and analysis (MIL-STD-1553, ARINC 429)
- MSO44 - 4-SRAUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MSO44 - 4-SRAUTO - Automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay, and CAN symbolic decoding)
- MSO44 - 4-SRAUTOSEN - Automotive sensor serial triggering and analysis (SENT)
- MSO44 - 4-SRCOMP - Computer serial triggering and analysis (RS-232/422/485/UART)
- MSO44 - 4-SREMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO44 - 4-SRENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- MSO44 - 4-SRI3C - MIPI I3C serial analysis (I3C decode and search only)
- MSO44 - 4-SRPM - Power Management serial triggering and analysis (SPMI)
- MSO44 - 4-SRUSB2 - USB serial bus triggering and analysis (USB2.0 LS, FS, HS)
- MSO44 - 4-PWR-BAS - Power Measurements and Analysis
- MSO44 - 4-SV-BAS - Spectrum View frequency domain analysis
- MSO44 - 4-PS2 - Power Solution Bundle (4-PWR-BAS, THDP0200, TCP0030A, 067-1686-xx deskew fixture)
- MSO44 - A0 - North America power plug (115 V, 60 Hz)
- MSO44 - A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO44 - A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO44 - A3 - Australia power plug (240 V, 50 Hz)
- MSO44 - A5 - Switzerland power plug (220 V, 50 Hz)
- MSO44 - A6 - Japan power plug (100 V, 50/60 Hz)
- MSO44 - A10 - China power plug (50 Hz)
- MSO44 - A11 - India power plug (50 Hz)
- MSO44 - A12 - Brazil power plug (60 Hz)
- MSO44 - A99 - No power cord
- MSO44 - T3 - Three Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS
- MSO44 - T5 - Five Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS
- MSO44 - R5 - Standard Warranty Extended to 5 Years
- MSO44 - C3 - Calibration service 3 Years
- MSO44 - C5 - Calibration service 5 Years
- MSO44 - D1 - Calibration Data Report
- MSO44 - D3 - Calibration Data Report 3 Years (with Option C3)
- MSO44 - D5 - Calibration Data Report 5 Years (with Option C5)
| Model | MSO44 |
|---|
Testwall can supply the used Tektronix MSO44 4-BW-500, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO44 4-BW-500.
