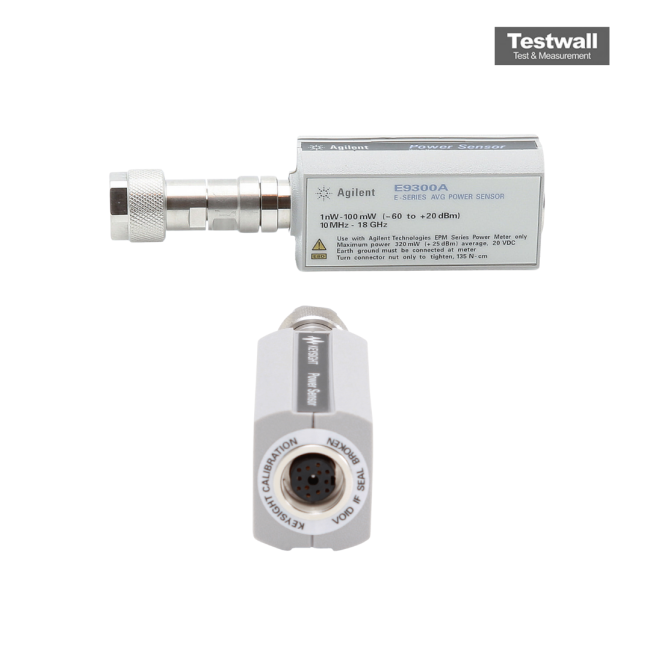

Keysight (Agilent) E9300A
10MHz-18GHz 100mW Average Power Sensor
10 MHz to 18 GHz Frequency Range
-60 to +20 dBm Power Range
Type-N male Connector
diode, average, wide dynamic range Sensor Type
+25 dBm (320 mW) average, +33 dBm (2 W) peak (<10 µs) Maximum Power
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Power Range | -60 to +20 dBm |
| Connector | Type-N male |
| Sensor Type | diode, average, wide dynamic range |
| Maximum Power | +25 dBm (320 mW) average, +33 dBm (2 W) peak (<10 µs) |
| SWR | 1.15 max. at 10 to 30 MHz, 1.13 max. at 30 MHz to 2 GHz, 1.19 max. at 2 to 14 GHz, 1.22 max. at 14 to 16 GHz, 1.26 max. at 16 to 18 GHz |
| Linearity | ±3.0% (-60 to -10 dBm), ±2.5% (-10 to 0 dBm), ±2.0% (0 to +20 dBm) |
| Compatible Meters | EPM series E4418B/E4419B, N1913A/N1914A; EPM-P series E4416A/E4417A; P-series N1911A/N1912A |
Compatible power meters
E4418B · E4419B · E4416A · E4417A · N1913A · N1914A · N1911A · N1912A · N8262A
The Keysight (Agilent) E9300A Power Sensor enables accurate average power measurement of RF and microwave signals, supporting all modulation formats across a wide dynamic range from –60 dBm to +20 dBm and a frequency range of 10 MHz to 18 GHz. Compatible with Keysight (Agilent) EPM, EPM-P, and P-series power meters, including the E4418A/B and E4419A/B models, it delivers fast, precise readings with up to 400 measurements per second when used with E4416A. Key performance elements like calibration factors, linearity, and temperature compensation are stored internally in EEPROM.
Engineered for modern signal environments, the E9300A features low SWR for reduced mismatch uncertainty and high maximum power tolerance, making it ideal for broadband and high-speed test setups.
Testwall can supply the used Keysight (Agilent) E9300A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E9300A.
