Keysight (Agilent) N8486AR
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 26,5 GHz à 110 GHz |
| Plage de puissance | -35 dBm à +20 dBm |
| Type de capteur | Capteur de puissance thermique (calorimétrique) |
| Connecteur d'entrée | Connecteur de type 1,0 mm (mâle) |
| Impédance | 50 Ohms |
| Incertitude de calibration | ±0,9 % (à 50 GHz) |
| Temps de réponse | 400 ms (typique) |
| Compatibilité | Compatible avec les wattmètres Keysight séries N1911A, N1912A, E4418B, E4419B |
| Température de fonctionnement | 0 °C à +55 °C |
| Facteur de calibration | Fourni avec les données de facteur de calibration tracées via EPROM interne |
Keysight (Agilent) N8486AR Options:
- N8486AR - CFT - SCPI code-compatible to 8480 Series sensors (calibration factor table not stored in EEPROM; data provided on label attached to sensor)
- N8486AR - 100 - Waveguide connector for N8486AR
- N8486AR - 1A7 - ISO 17025 calibration with test data
- N8486AR - A6J - ANSI Z540 calibration with test data
- N8486AR - R-51B-001-3C - Return to Keysight Technologies Warranty - 3 years
- N8486AR - R-51B-001-5C - Warranty Assurance Plan - Return to Keysight Technologies - 5 years
- N8486AR - OB1 - English language Operating and Service Guide
- N8486AR - ABJ - Japanese localization Operating and Service Guide
| Model | N8486AR |
|---|
KEYSIGHT N8486AR

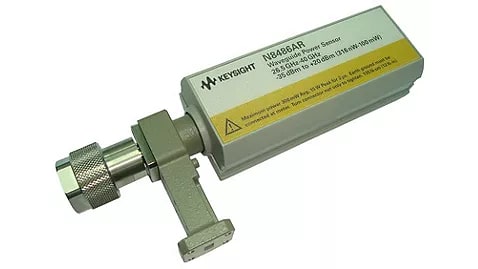

The Keysight N8486AR Power Sensor is part of the new series that replaces the 8480 Series Power Sensors. The new power sensor is integrated with EEPROM feature, which allows users to calibrate the power sensors without manually entering the calibration factors to the power meter. By comparing to legacy 8480 Series Power Sensors, there are tremendous improvements such as wider dynamic range and frequency range, better accuracy, linearity, repeatability, and SWR.
Features and specifications of the Keysight N8486AR Power Sensor include:
-
EEPROM to store cal factors eliminates manual entry
-
Wide frequency range from 26.5 GHz to 40 GHz
-
Wide dynamic range from -35 dBm to +20 dBm
-
Best-in-class power linearity of less than 1%, excellent SWR of mismatch uncertainty and highly accurate power repeatability
-
Accurate calibration and traceability to US National Institute of Standards and Technology (NIST)
-
SCPI codes compatible with 8480 series (option CFT)
Note: Option CFT is available as a replacement of legacy 8480 Series power sensors intended for cal factor manual entry and SCPI compatibility. Option CFT is not compatible with 43x and other obsolete power meters.
-
SCPI codes compatible with E-Series sensor (standard option)
-
Compatible with EPM (new N1913A, N1914A, E4418B, N1918B, N1919B, EPM-P (E4416A E4417A), P-Series (N1911/12A) power meters (Firmware upgrade required)
