Keysight (Agilent)

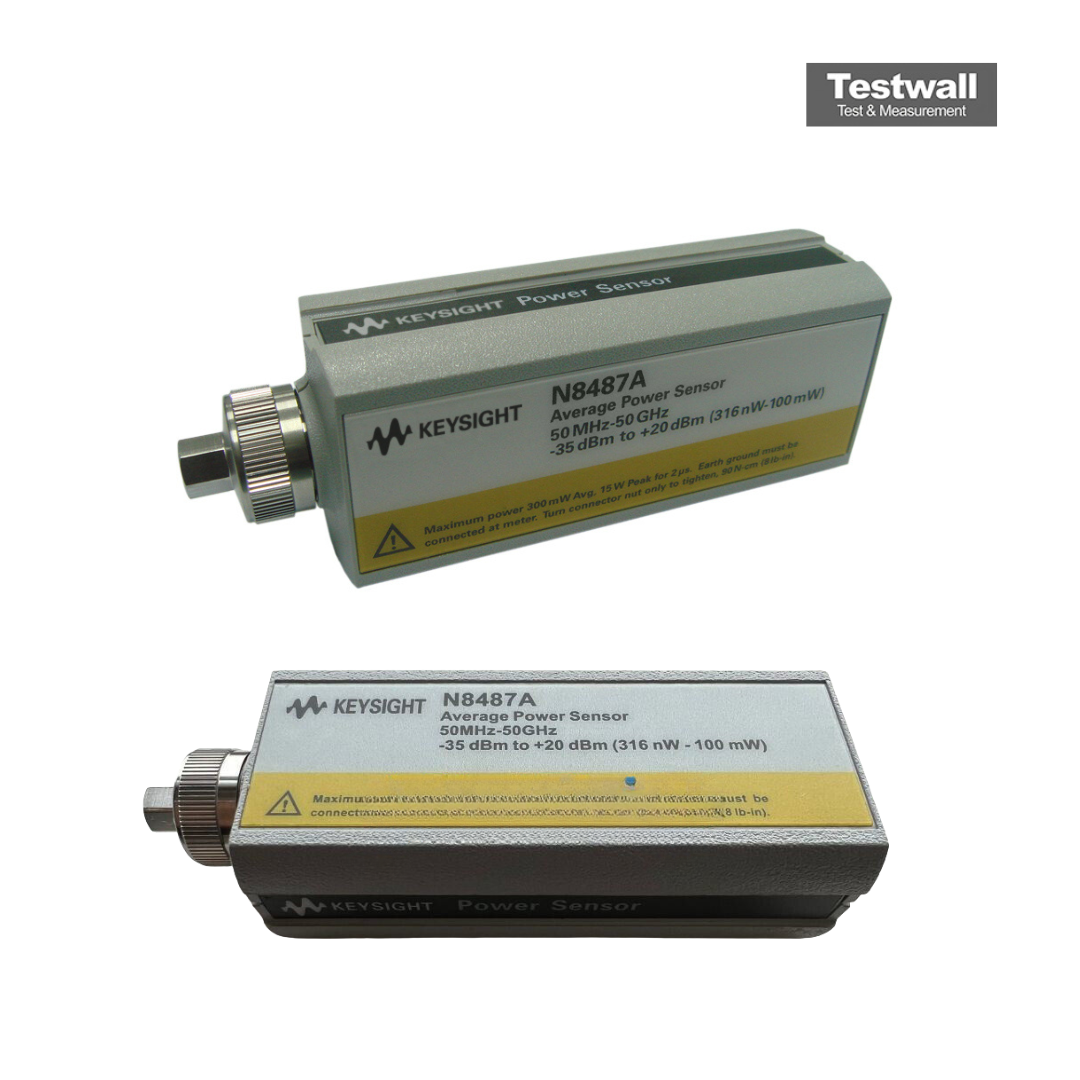

Keysight (Agilent) N8487A
Power Sensor, 50 MHz - 50 GHz, -35 dBm to +20 dBm
thermocouple Type de capteur
50 MHz à 50 GHz Gamme de fréquences
-35 à +20 dBm Plage de puissance
2,4 mm mâle Connecteur
38 × 30 × 121 mm Dimensions (L × H × P)
| Attribut | Valeur |
|---|---|
| Type de capteur | thermocouple |
| Gamme de fréquences | 50 MHz à 50 GHz |
| Plage de puissance | -35 à +20 dBm |
| Connecteur | 2,4 mm mâle |
| Dimensions (L × H × P) | 38 × 30 × 121 mm |
| Puissance maximale | +25 dBm moyenne, 15 W crête (2 µs) |
| TOS | 1,08 max. à 50 à 100 MHz, 1,05 max. à 100 MHz à 2 GHz, 1,10 max. à 2 à 12,4 GHz, 1,16 max. à 12,4 à 18 GHz, 1,22 max. à 18 à 26,5 GHz, 1,30 max. à 26,5 à 40 GHz, 1,34 max. à 40 à 50 GHz |
| Wattmètres compatibles | EPM N1913A/N1914A, E4418B/E4419B, EPM-P E4416A/E4417A, P-Series N1911A/N1912A (8480 série SCPI compatible avec Opt. CFT) |
| Poids | 0,15 kg |
Wattmètres compatibles
E4418B · E4419B · E4416A · E4417A · N1913A · N1914A · N1911A · N1912A · N8262A
Keysight (Agilent) N8487A Options:
- N8487A - CFT - SCPI code-compatible to 8480 Series sensors (N8480 sensor without the calibration factor table stored in the EEPROM; calibration factor data is provided on the label attached to the power sensor)
- N8487A - 100 - 2.4 mm (male) connector
- N8487A - 1A7 - ISO 17025 calibration with test data
- N8487A - A6J - ANSI Z540 calibration with test data
- N8487A - R-51B-001-3C - Return to Keysight Technologies Warranty - 3 years
- N8487A - R-51B-001-5C - Warranty Assurance Plan - Return to Keysight Technologies - 5 years
- N8487A - OB1 - English language Operating and Service Guide
- N8487A - ABJ - Japanese localization Operating and Service Guide

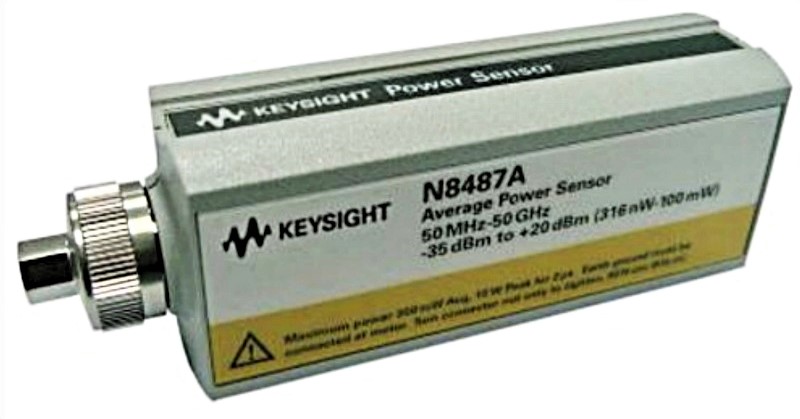

KEYSIGHT N8487A (Agilent)
The Keysight N8487A Power Sensor is the replacement solution for the Keysight 8487A Power Sensor. The newer N8487A power sensor is integrated with EEPROM feature, which allows users to calibrate the power sensors without manually entering the calibration factors to the power meter. By comparing to legacy 8480 Series Power Sensors, there are tremendous improvements such as wider dynamic range and frequency range, better accuracy, linearity, repeatability, and SWR.
Specifications of the Keysight N8487A (Agilent) Power Sensor include:
-
EEPROM to store cal factors eliminates manual entry
-
Wide frequency range from 50 MHz to 50 GHz
-
Wide dynamic range from -35 dBm to +20 dBm
-
Best-in-class power linearity of less than 1%, excellent SWR of mismatch uncertainty and highly accurate power repeatability
-
Accurate calibration and traceability to US National Institute of Standards and Technology (NIST)
-
SCPI codes compatible with 8480 series (option CFT)
