Keysight (Agilent)

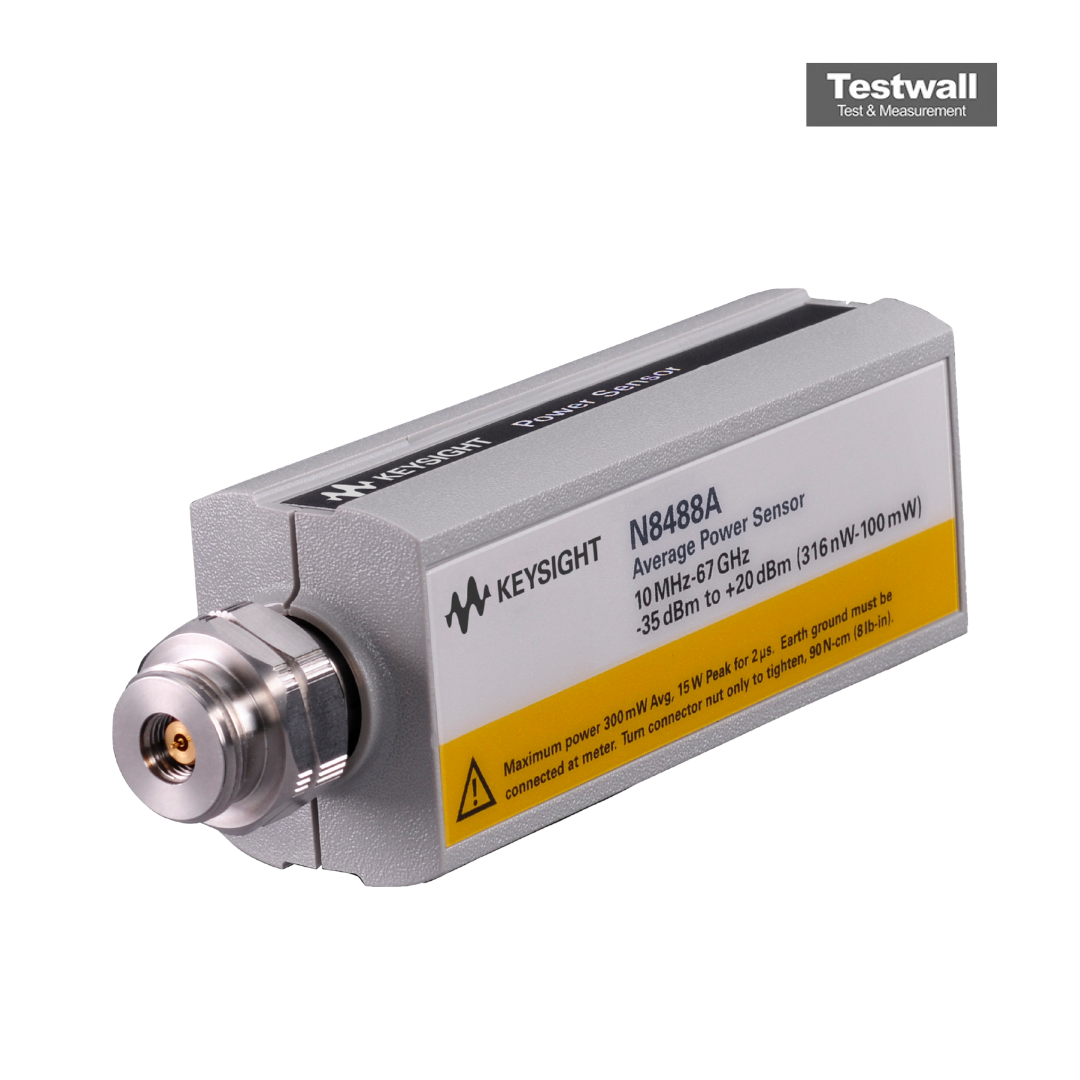

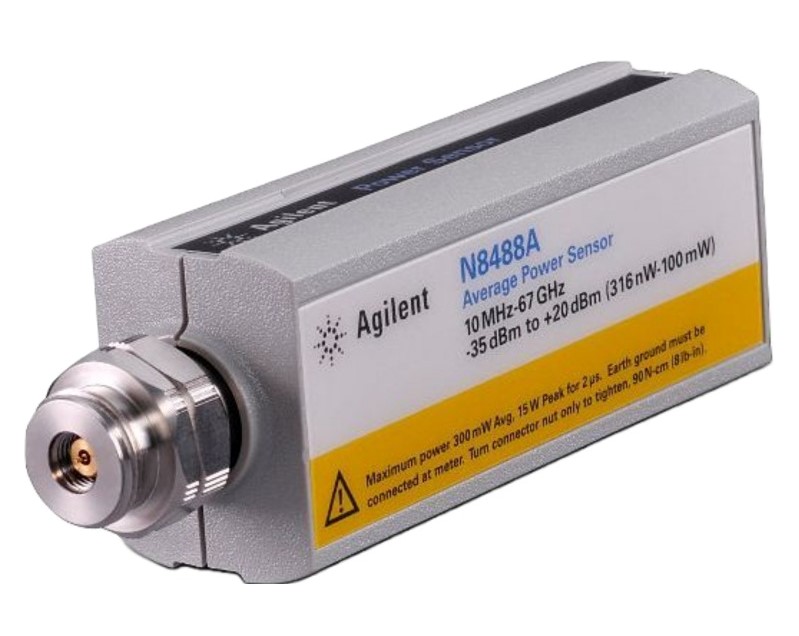

Keysight (Agilent) N8488A
Thermocouple Power Sensor, 10 MHz - 67 GHz, -35 to +20 dBm
thermocouple Type de capteur
-35 à +20 dBm Plage de puissance
1,85 mm mâle Connecteur
38 × 30 × 115 mm Dimensions (L × H × P)
0,16 kg Poids
| Attribut | Valeur |
|---|---|
| Type de capteur | thermocouple |
| Plage de puissance | -35 à +20 dBm |
| Connecteur | 1,85 mm mâle |
| Dimensions (L × H × P) | 38 × 30 × 115 mm |
| Poids | 0,16 kg |
| Gamme de fréquences | 10 MHz à 67 GHz (à 70 GHz typ.) |
| Puissance maximale | +25 dBm moyenne, 15 W crête (2 µs) |
| TOS | 1,08 max. à 10 MHz à 2,4 GHz, 1,10 max. à 2,4 à 12,4 GHz, 1,12 max. à 12,4 à 18 GHz, 1,21 max. à 18 à 26,5 GHz, 1,30 max. à 26,5 à 40 GHz, 1,46 max. à 40 à 67 GHz |
| Wattmètres compatibles | EPM N1913A/N1914A, E4418B/E4419B, EPM-P E4416A/E4417A, P-Series N1911A/N1912A |
Wattmètres compatibles
E4418B · E4419B · E4416A · E4417A · N1913A · N1914A · N1911A · N1912A · N8262A
Keysight (Agilent) N8488A Options:
- N8488A - CFT - SCPI code-compatible to 8480 Series sensors (Note: Option CFT is not available for the N8488A)
- N8488A - 100 - 1.85 mm (male) connector for N8488A
- N8488A - 1A7 - ISO 17025 calibration with test data
- N8488A - A6J - ANSI Z540 calibration with test data
- N8488A - R-51B-001-3C - Return to Keysight Technologies Warranty - 3 years
- N8488A - R-51B-001-5C - Warranty Assurance Plan - Return to Keysight Technologies - 5 years
- N8488A - OB1 - English language Operating and Service Guide
- N8488A - ABJ - Japanese localization Operating and Service Guide
KEYSIGHT N8488A
The Keysight N8488A power sensor has the widest frequency range in Keysight's family of N8480 power sensors. Each of these new sensors allow users to calibrate the power sensor without manually entering the calibration factors in to the power meter. Similar to the rest of N8480 power sensors, the new N8488A power sensors are designed with excellent accuracy, linearity, repeatability, and SWR.
Features and Specifications of the Keysight N8488A (Agilent) Power Sensor include:
- EEPROM to store cal factors eliminates manual entry
- Wide frequency range from 10 MHz to 67 GHz (Not warranted spec from 67 to 70 GHz)
- Wide dynamic range from -35 to +20 dBm
- Best-in-class power linearity of less than 1%, excellent SWR of mismatch uncertainty and highly accurate power repeatability
- Accurate calibration and traceability to US National Institute of Standards and Technology (NIST)
- SCPI codes compatibility
- Compatible with EPM (new N1913/14A, E4418/19B), EPM-P (E4416/17A), P-Series (N1911/12A) power meters
