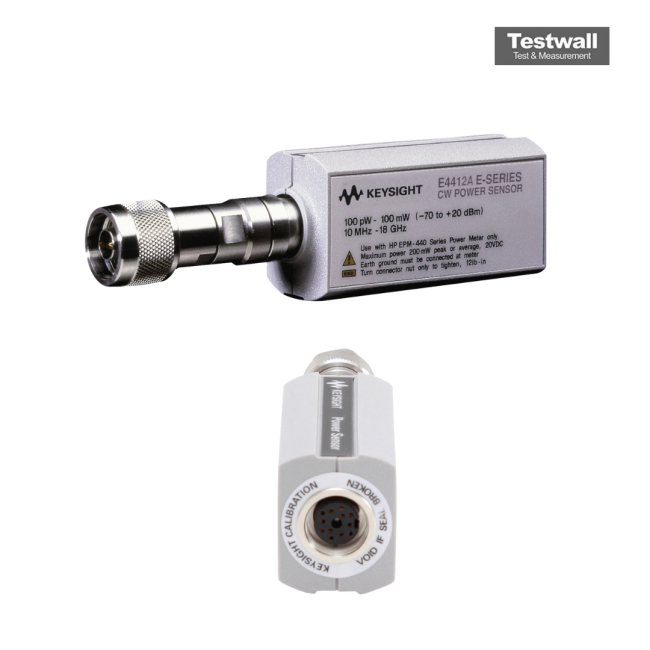

Keysight (Agilent) E4412A
10MHz-18GHz 200mW CW Power Sensor
diode, CW Sensor Type
10 MHz to 18 GHz Frequency Range
-70 to +20 dBm Power Range
+23 dBm (200 mW) Maximum Power
Type-N male Connector
| Attribute | Value |
|---|---|
| Sensor Type | diode, CW |
| Frequency Range | 10 MHz to 18 GHz |
| Power Range | -70 to +20 dBm |
| Maximum Power | +23 dBm (200 mW) |
| Connector | Type-N male |
| SWR | 1.22 max. at 10 to 30 MHz, 1.15 max. at 30 MHz to 2 GHz, 1.17 max. at 2 to 6 GHz, 1.2 max. at 6 to 11 GHz, 1.27 max. at 11 to 18 GHz |
| Linearity | ±3% (-70 to +10 dBm), ±4.5% (+10 to +20 dBm) |
| Compatible Meters | EPM series E4418B/E4419B, N1913A/N1914A; EPM-P series E4416A/E4417A; P-series N1911A/N1912A |
Compatible power meters
E4418B · E4419B · E4416A · E4417A · N1913A · N1914A · N1911A · N1912A · N8262A
The Keysight (Agilent) E4412A Wide Dynamic Range Power Sensor delivers rapid and precise power measurements across a wide dynamic range from -70 dBm to +20 dBm. It supports high-speed readings up to 400/sec when used with the E4416A power meter. Designed for accuracy and efficiency, the sensor integrates calibration factors, linearity, and temperature compensation data within its EEPROM. Its excellent SWR minimizes mismatch uncertainty, while full traceability to NIST ensures reliable calibration standards. It features compatibility with EPM, EPM-P, and P-series power meters.
Ideal for high-speed, high-accuracy RF power testing in automated and lab-based environments.
Testwall can supply the used Keysight (Agilent) E4412A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E4412A.
