Keysight (Agilent)

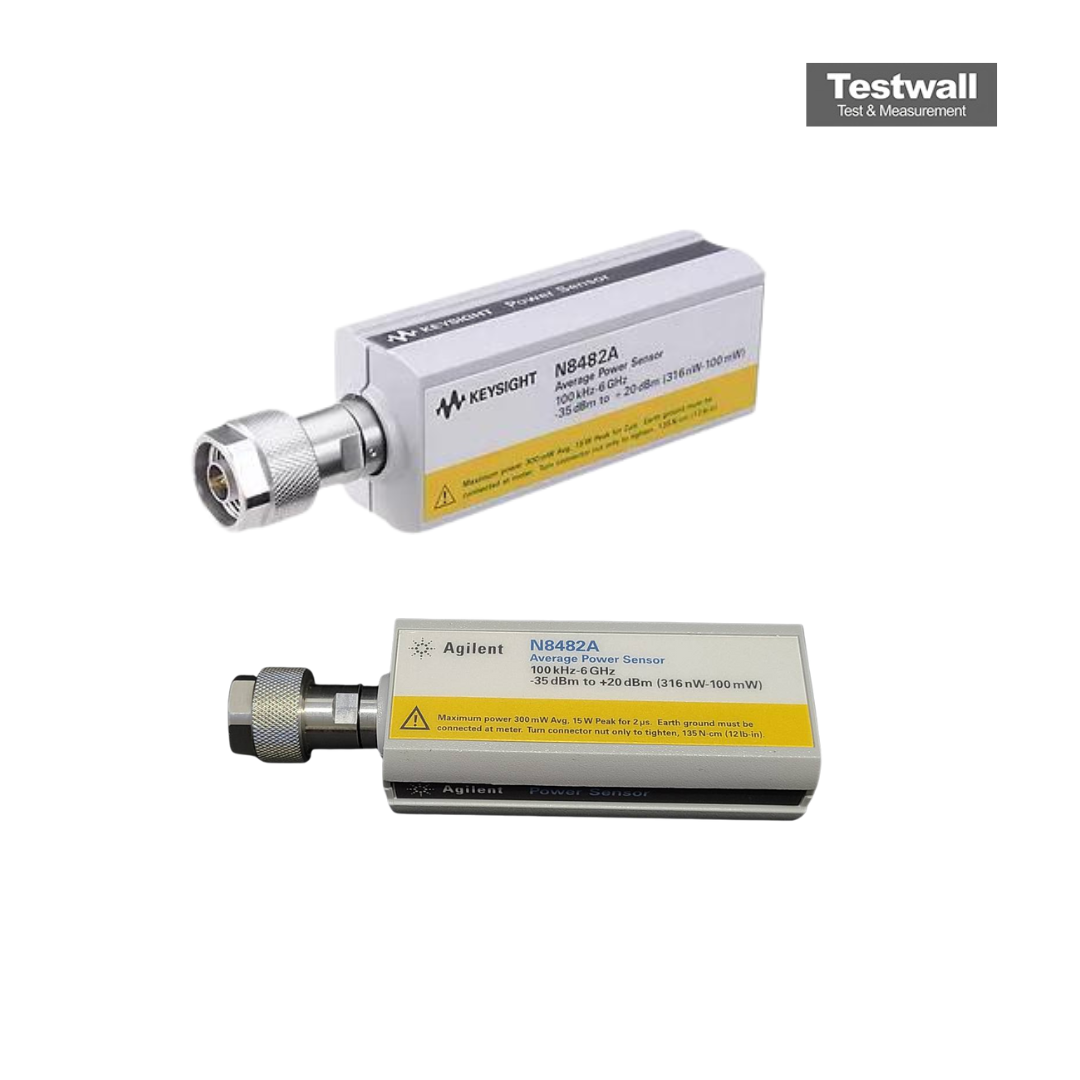

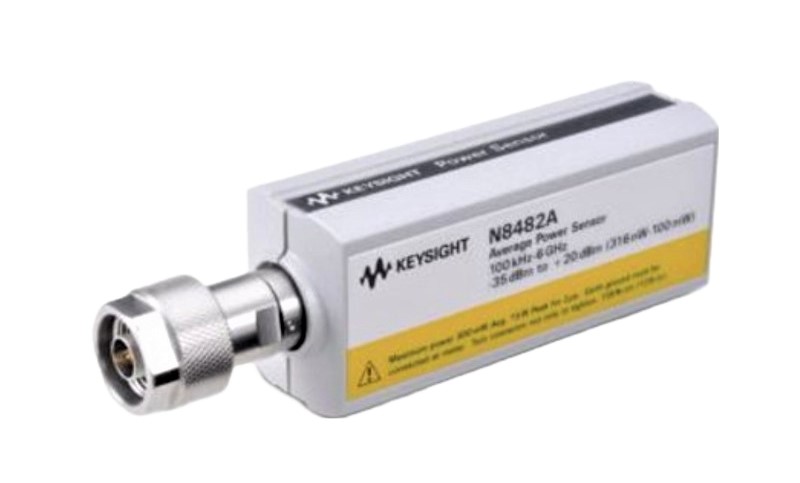

Keysight (Agilent) N8482A
Power Sensor, Thermocouple, 100 kHz - 6 GHz, -35 dBm to +20 dBm
thermocouple Type de capteur
100 kHz à 6 GHz Gamme de fréquences
-35 à +20 dBm Plage de puissance
type N mâle Connecteur
38 × 30 × 130 mm Dimensions (L × H × P)
| Attribut | Valeur |
|---|---|
| Type de capteur | thermocouple |
| Gamme de fréquences | 100 kHz à 6 GHz |
| Plage de puissance | -35 à +20 dBm |
| Connecteur | type N mâle |
| Dimensions (L × H × P) | 38 × 30 × 130 mm |
| Puissance maximale | +25 dBm moyenne, 15 W crête (2 µs) |
| TOS | 1,54 max. à 100 à 300 kHz, 1,17 max. à 300 kHz à 1 MHz, 1,06 max. à 1 MHz à 2 GHz, 1,07 max. à 2 à 6 GHz |
| Wattmètres compatibles | EPM N1913A/N1914A, E4418B/E4419B, EPM-P E4416A/E4417A, P-Series N1911A/N1912A (8480 série SCPI compatible avec Opt. CFT) |
| Poids | 0,18 kg |
Wattmètres compatibles
E4418B · E4419B · E4416A · E4417A · N1913A · N1914A · N1911A · N1912A · N8262A
Keysight (Agilent) N8482A Options:
- N8482A - CFT - N8480 sensor without the calibration factor table stored in the EEPROM. Calibration factor data is provided on the label attached to the power sensor
- N8482A - 100 - Type-N (male) connector
- N8482A - 1A7 - ISO 17025 calibration with test data
- N8482A - A6J - ANSI Z540 calibration with test data
- N8482A - R-51B-001-3C - Return to Keysight Technologies Warranty - 3 years
- N8482A - R-51B-001-5C - Warranty Assurance Plan - Return to Keysight Technologies - 5 years
- N8482A - OB1 - English language Operating and Service Guide
- N8482A - ABJ - Japanese localization Operating and Service Guide
KEYSIGHT N8482A (Agilent)
The Keysight N8482A Power Sensor is the replacement solution for the Keysight 8482A Power Sensor. The newer N8482A power sensor is integrated with EEPROM feature, which allows users to calibrate the power sensors without manually entering the calibration factors to the power meter. By comparing to legacy 8480 Series Power Sensors, there are tremendous improvements such as wider dynamic range and frequency range, better accuracy, linearity, repeatability, and SWR.
Specifications of the Keysight N8482A (Agilent) Power Sensor include:
- EEPROM to store cal factors eliminates manual entry
- Wide frequency range from 100 kHz to 6 GHz
- Wide dynamic range from -35 dBm to +20 dBm
- Best-in-class power linearity of less than 1%, excellent SWR of mismatch uncertainty and highly accurate power repeatability
- SCPI codes compatible with 8480 series (option CFT)
